| KC-G Series Vehicle Parameter Table |
| Vehicle Model |
 |
 |
 |
 |
 |
 |
 |
 |
| G2 |
G2H |

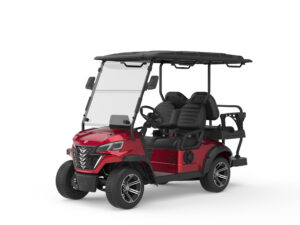

G2+2 |
G2+2H |
V2H |

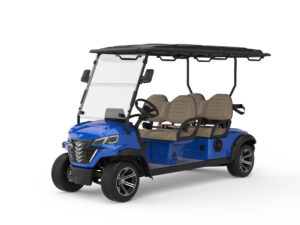

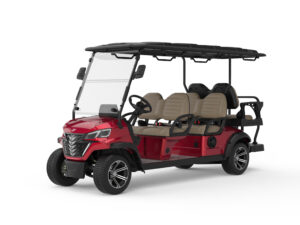

G4+2 |

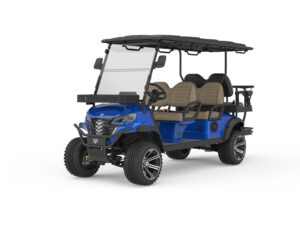

G4+2H |
V4H |
| Powertrain |
| Motor |
48V5KW IP67 AC Motor |
| Controller |
48V/350A IP67 AC Controller, with CAN bus & Built-in Bluetooth |
| Battery |
51.2V105AH LiFePO4 Battery (incl. UN38.8, MSDS certifications, etc.) |
| Charger |
Intelligent On-board Charger 48V/25A, Charging Time ≤5 hours |
| DC |
High-power non-isolated DC-DC 48V/12V-300W |
| Body/Chassis |
| Chassis |
High-strength sheet metal beam w/ composite frame; Painting: Pickling + E-coating + Spray painting, Pillar fine sand texture |
| Body |
Injection molded exterior (Metallic paint finish), Injection molded matte black roof |
| Flooring |
Integrated molded PVC anti-aging floor vinyl |
| Seats |
Integrated foam molded seat cushion + Premium microfiber leather; Leather embossed (striped) |
| Front Suspension |
Dual-arm suspension + coil spring + hydraulic shock absorber |
| Rear Suspension |
Integral rear axle, Ratio 12.3:1 Coil spring + Tubular hydraulic shock absorber + Single swing arm + Stabilizer bar suspension |
| Braking System |
Four-wheel hydraulic brake, Four-wheel disc brake + Electromagnetic parking brake (with vehicle towing function) |
| Steering System |
Rack and pinion steering system, Automatic backlash compensation |
| Instrument Panel |
IP66 Advanced Multimedia 10″ Combination Instrument Cluster with Vehicle Information and Multimedia Functions |
| grille assembly |
Front Grille featuring an Illuminated Laser-Engraved Logo and Dynamic Multicolor Sequential LED Lights |
| Headlights |
LED front combination lights (Low beam, High beam, Turn signal, DRL, Position light) |
| Taillights |
LED rear combination lights (Brake light, Position light, Turn signal) |
| Load/ Dimensions |
| Curb Weight (excl. battery) |
≦390kg |
≦420kg |
≦460kg |
≦485kg |
≦445kg |
≦490kg |
≦555kg |
≦515kg |
| Seats |
2 |
2 |
4 |
4 |
2 |
6 |
6 |
4 |
| Body Dimensions |
2360*1330*1900mm |
2430*1330*2040mm |
2860*1330*1900mm |
2930*1330*2040mm |
2930*1330*2040mm |
3610*1330*1900mm |
3680*1330*2040mm |
3680*1330*2040mm |
| Front/Rear Track |
Front 1030mm/Rear 1030mm |
| Wheelbase |
1675mm |
2420mm |
| Vehicle Performance |
| Max Speed |
25MPH |
| Min Turning Radius |
4.5m |
5.5m |
| Braking Distance |
＜3m |
＜4m |
| Gradeability / Parking Gradeability |
20% |
| Range |
60-80KM(Flat road) |
| Min Ground Clearance |
140mm |
190mm |
140mm |
190mm |
190mm |
140mm |
190mm |
190mm |
