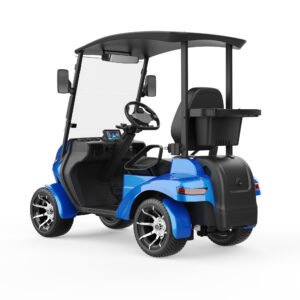

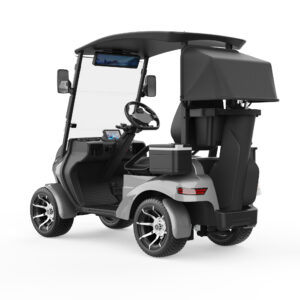

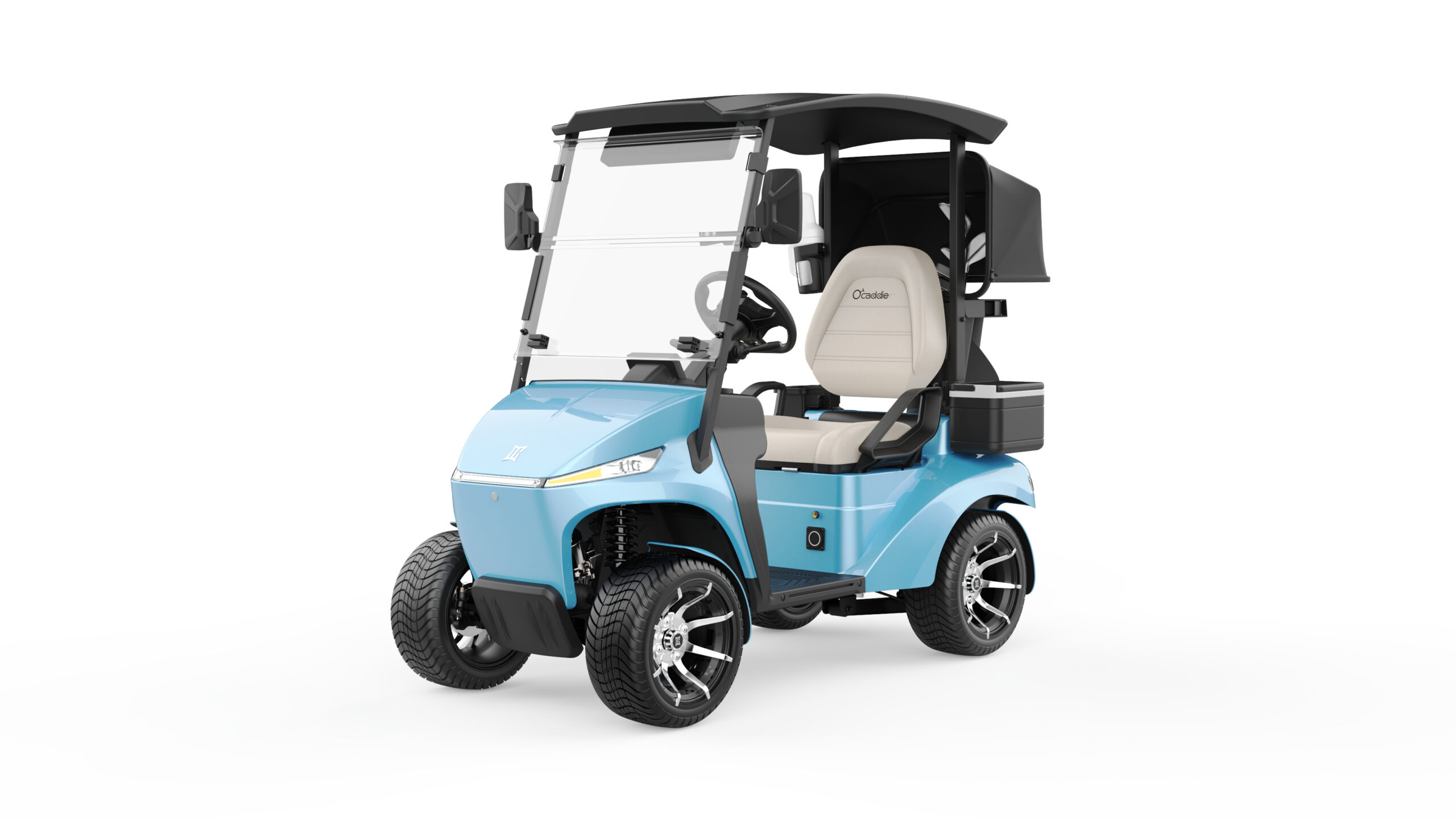

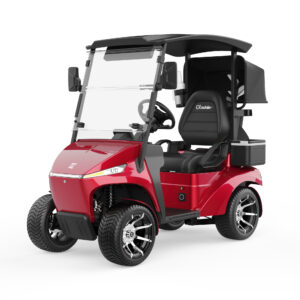

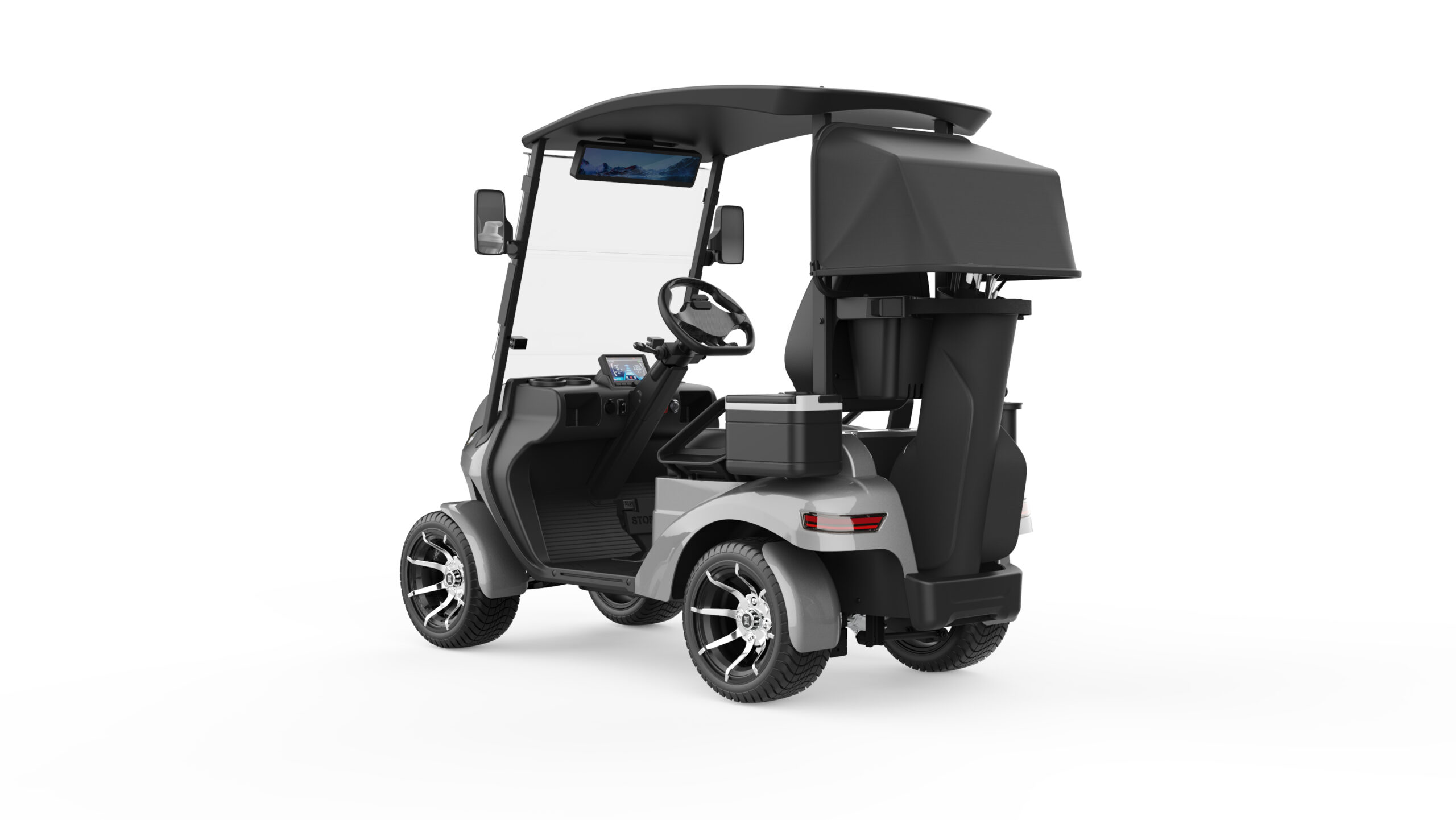

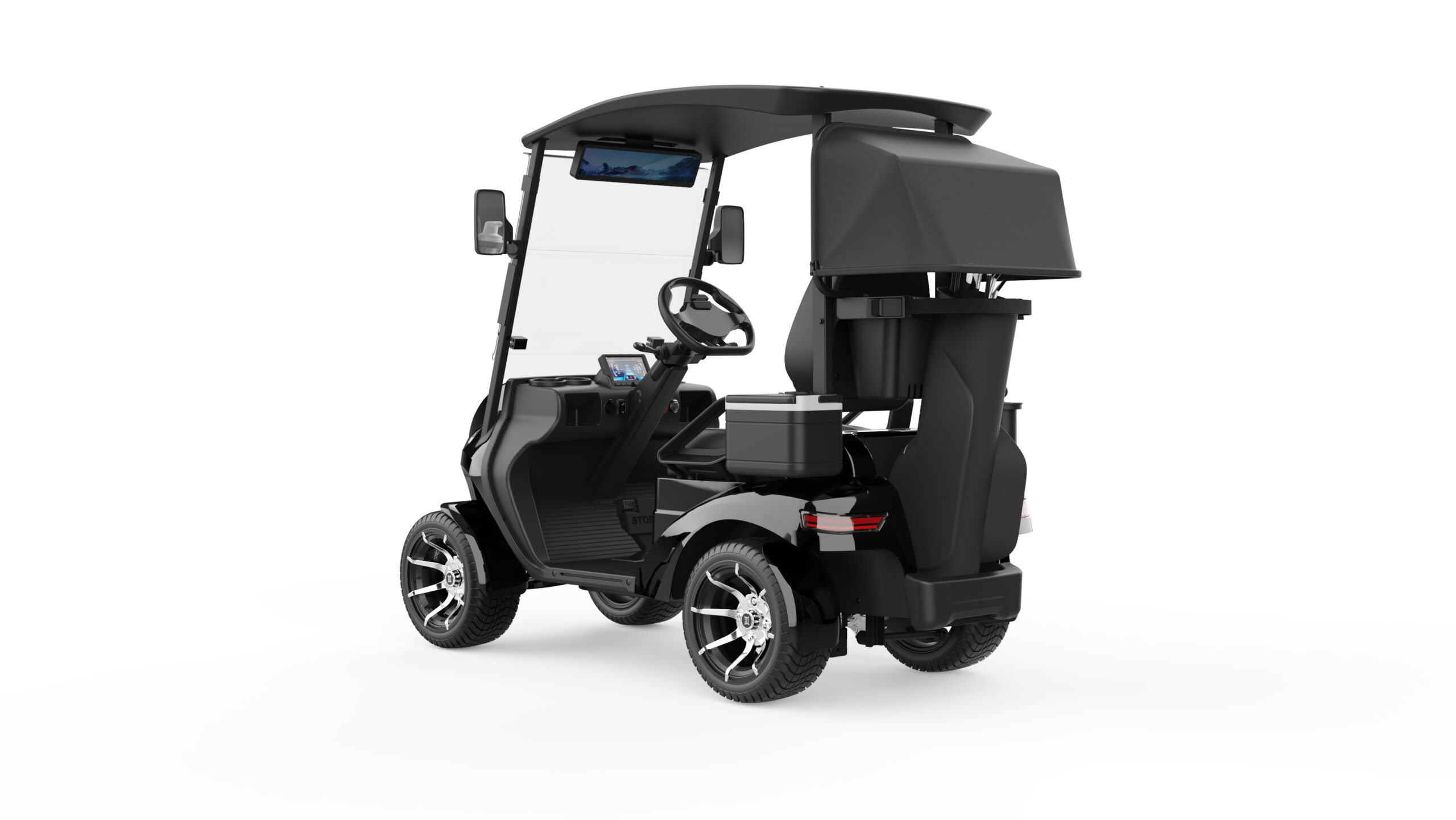

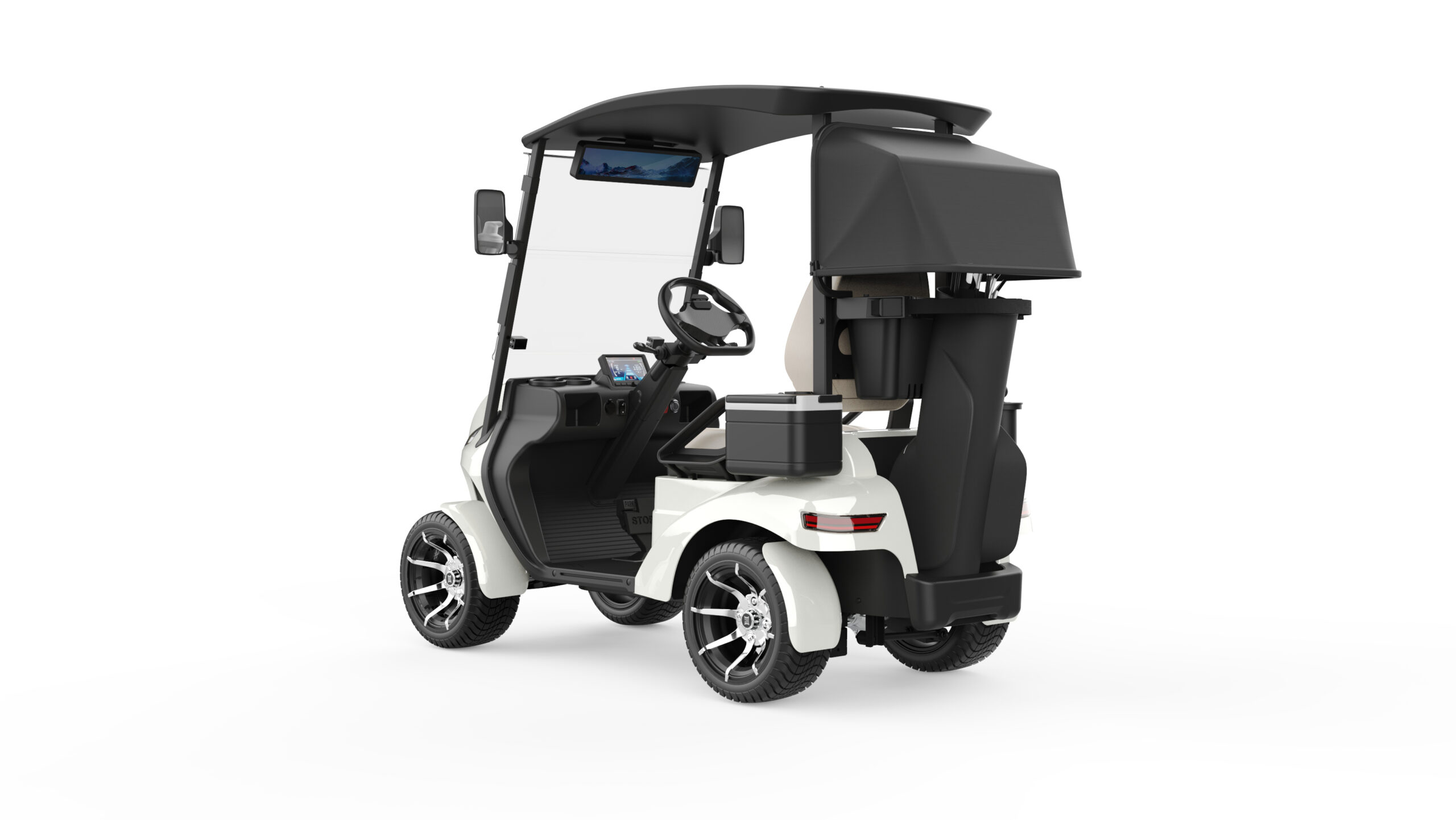

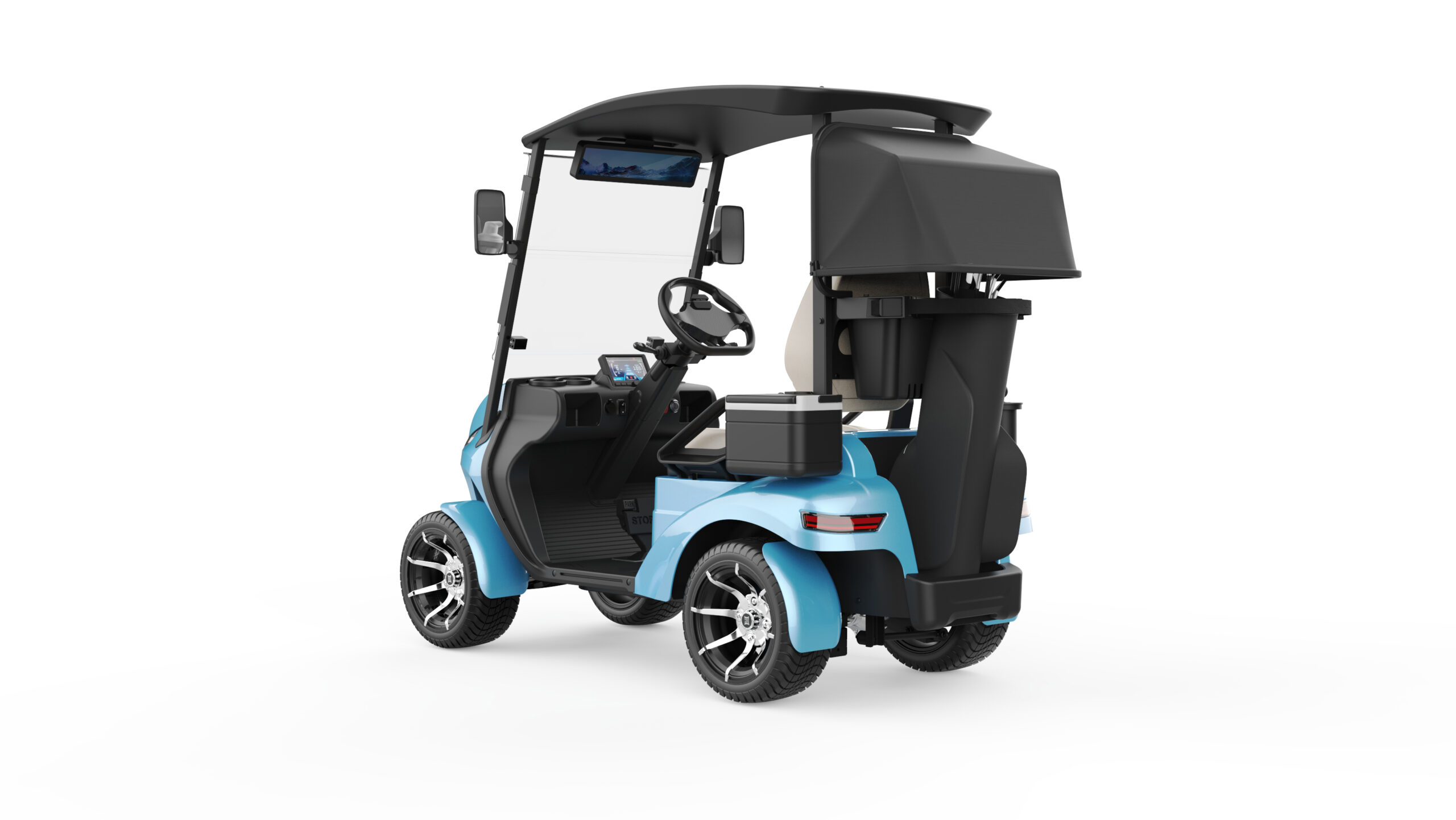

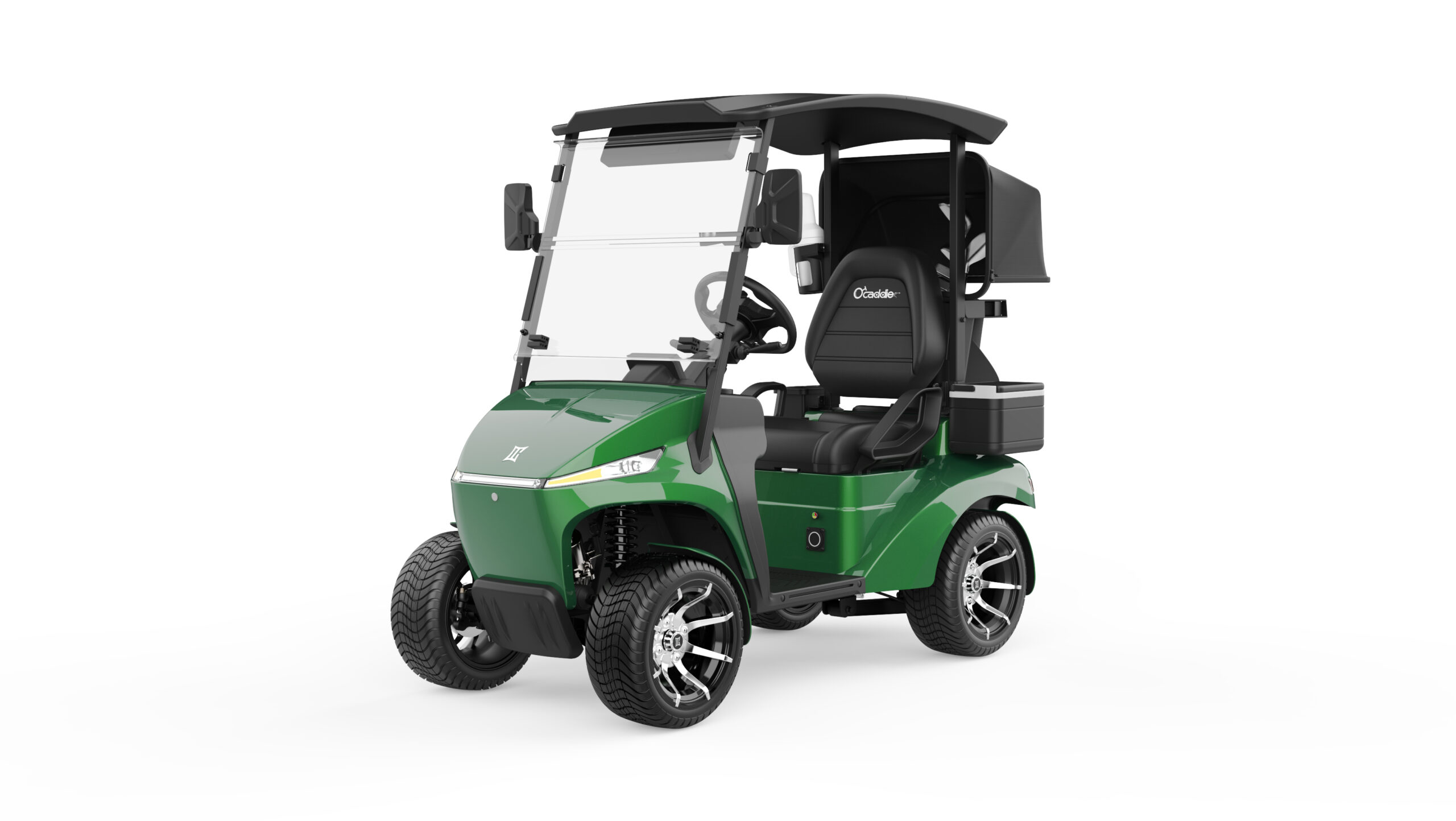

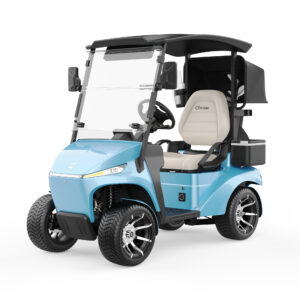

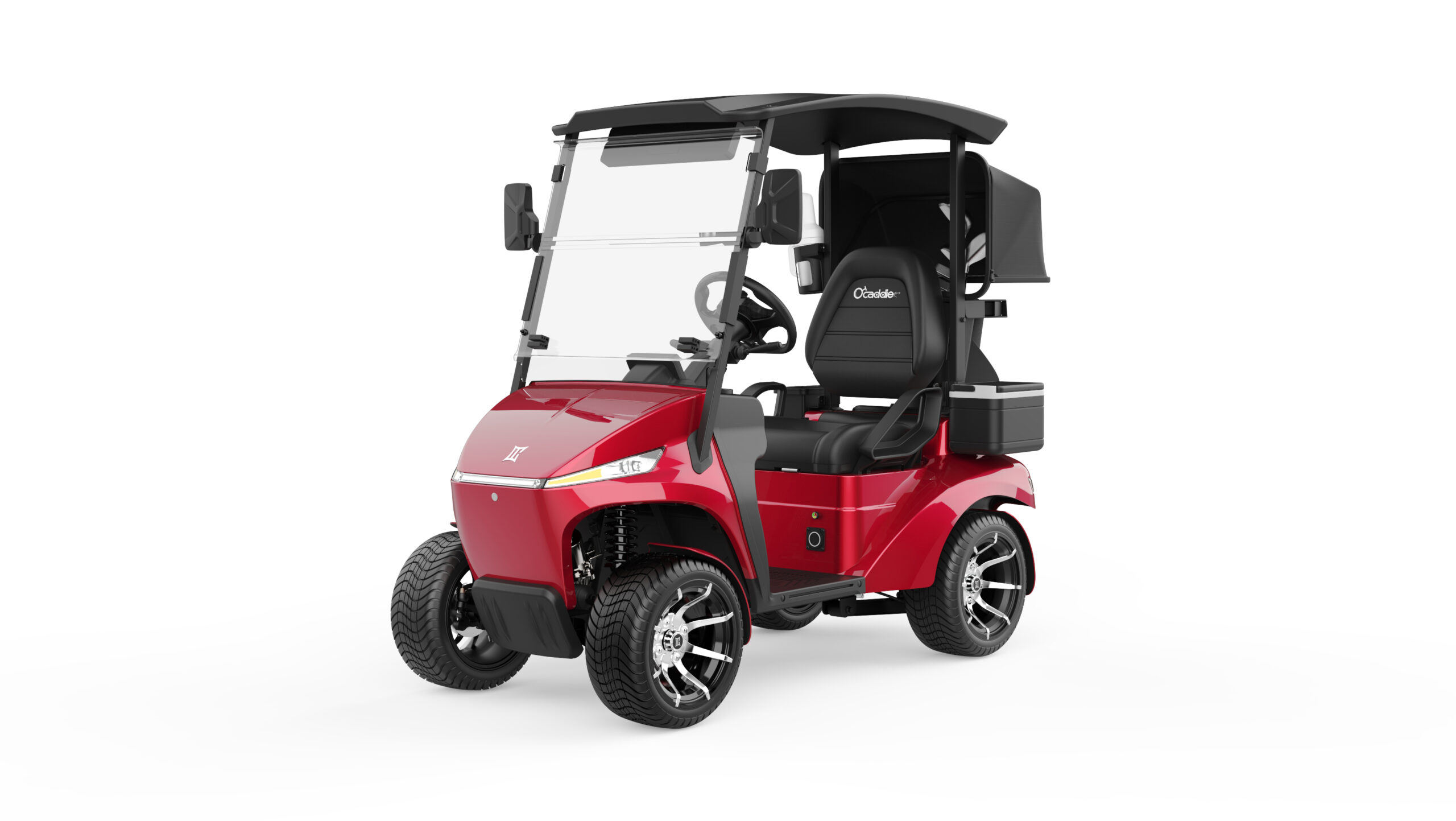

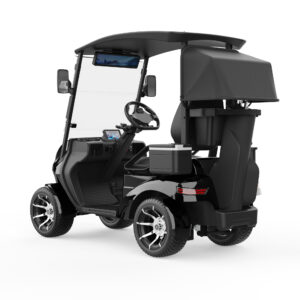

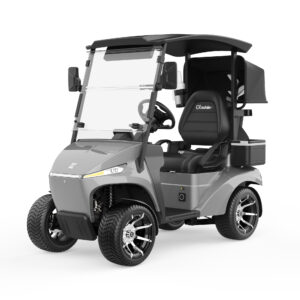

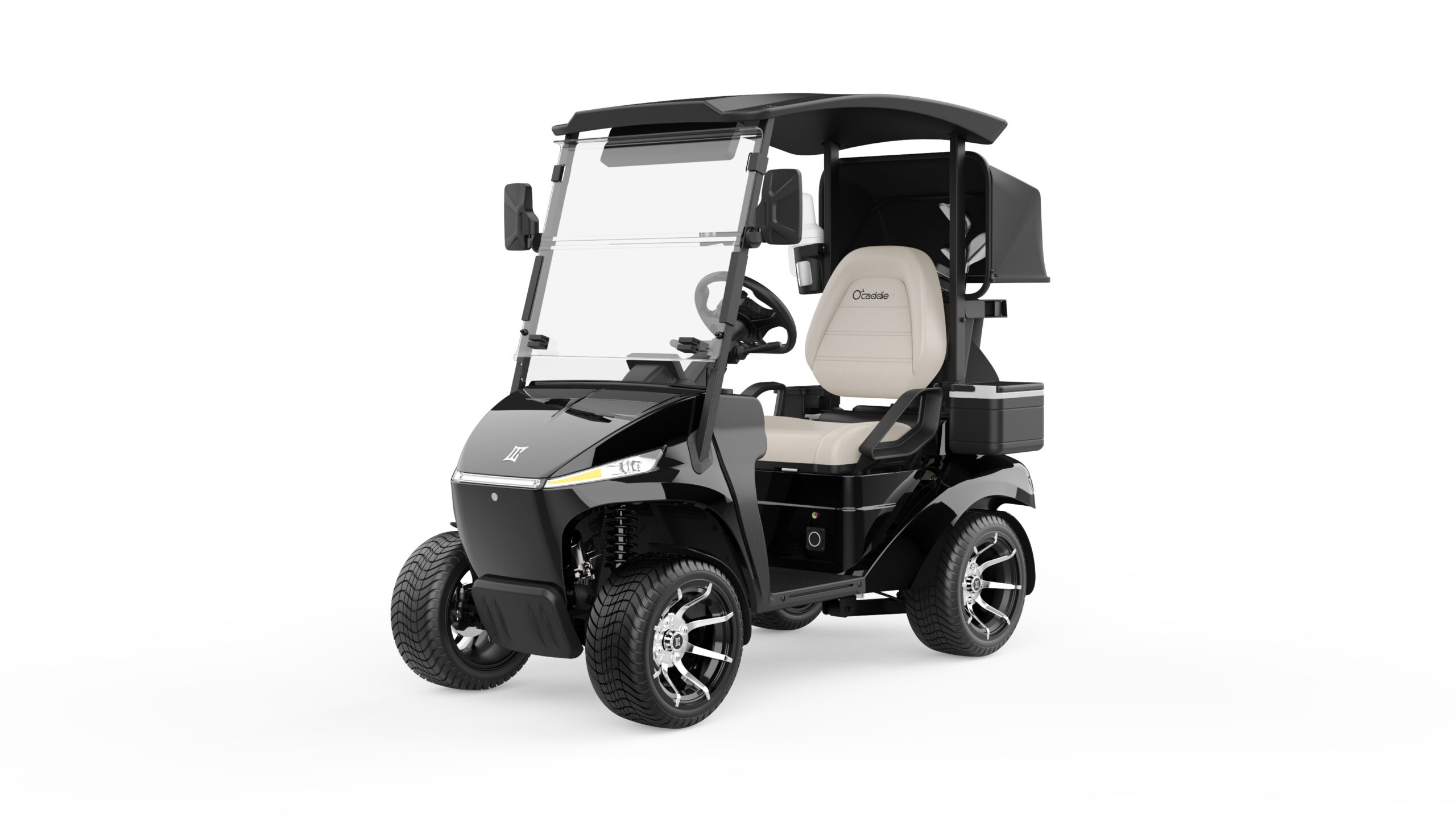

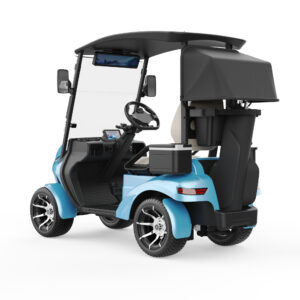

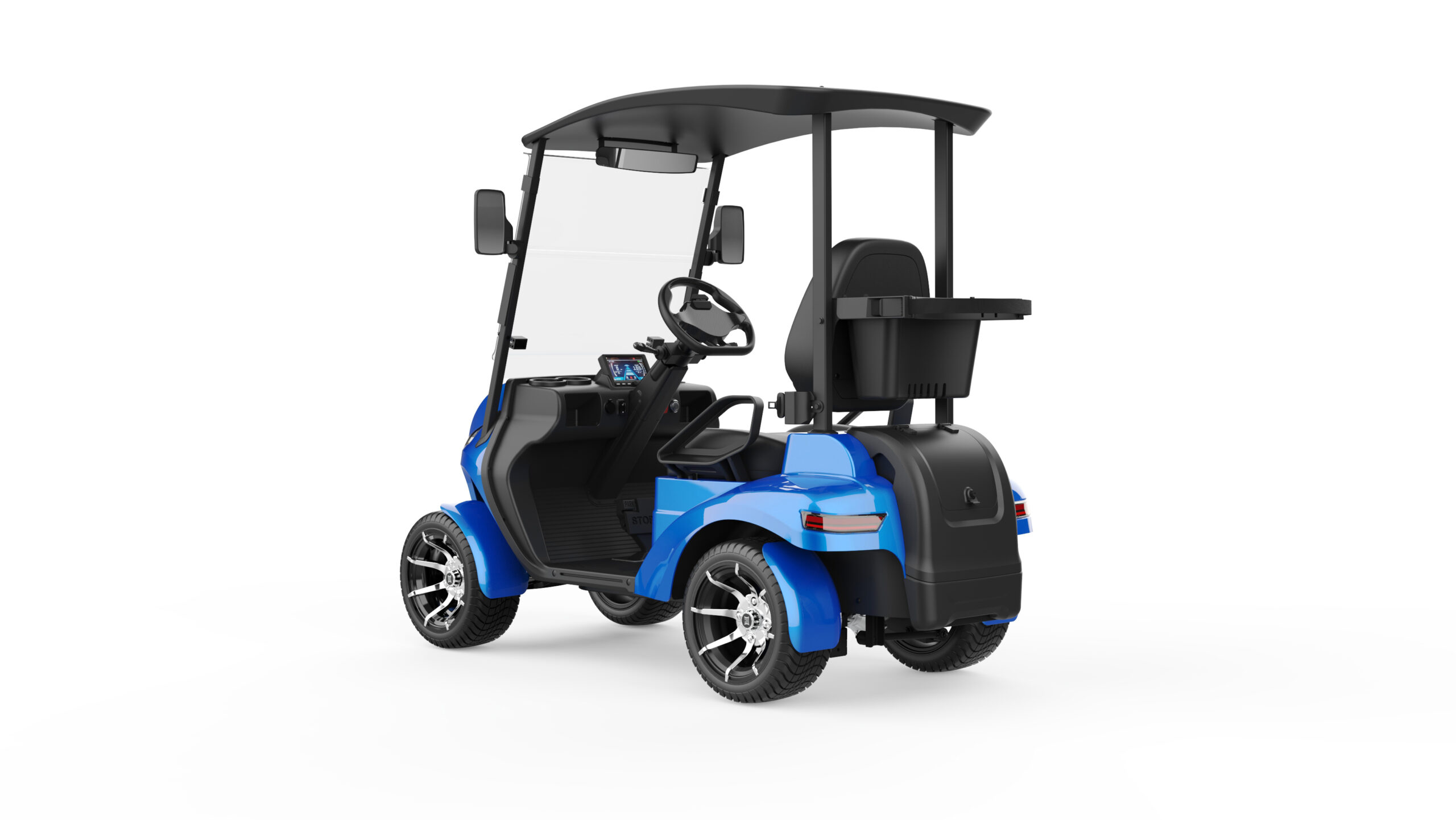

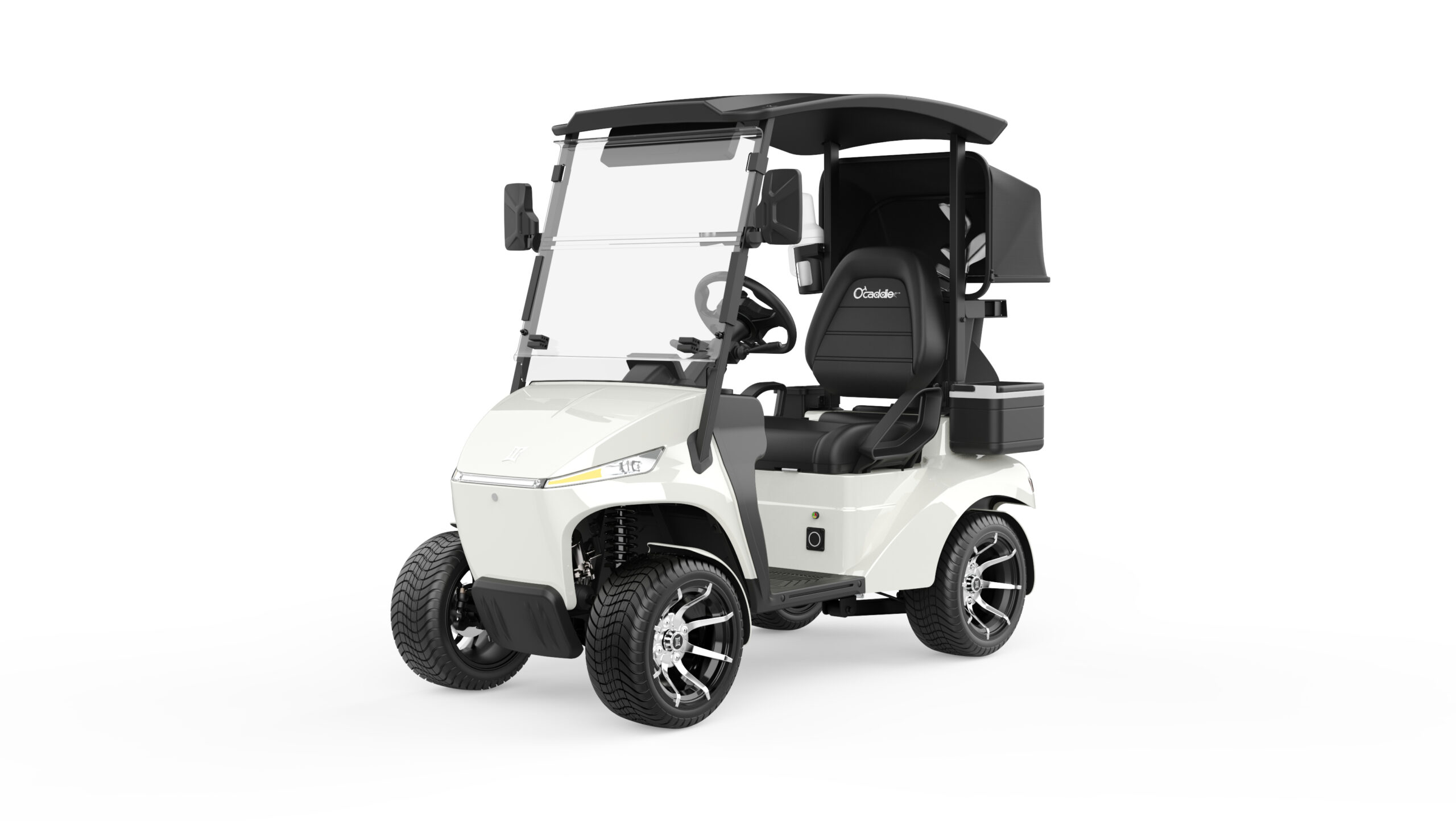

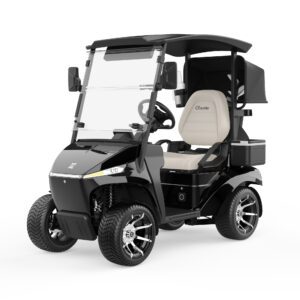

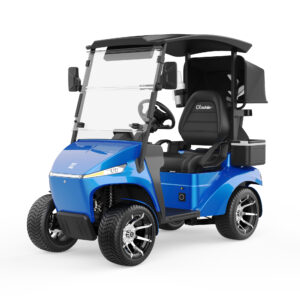

DS-G1 PRO

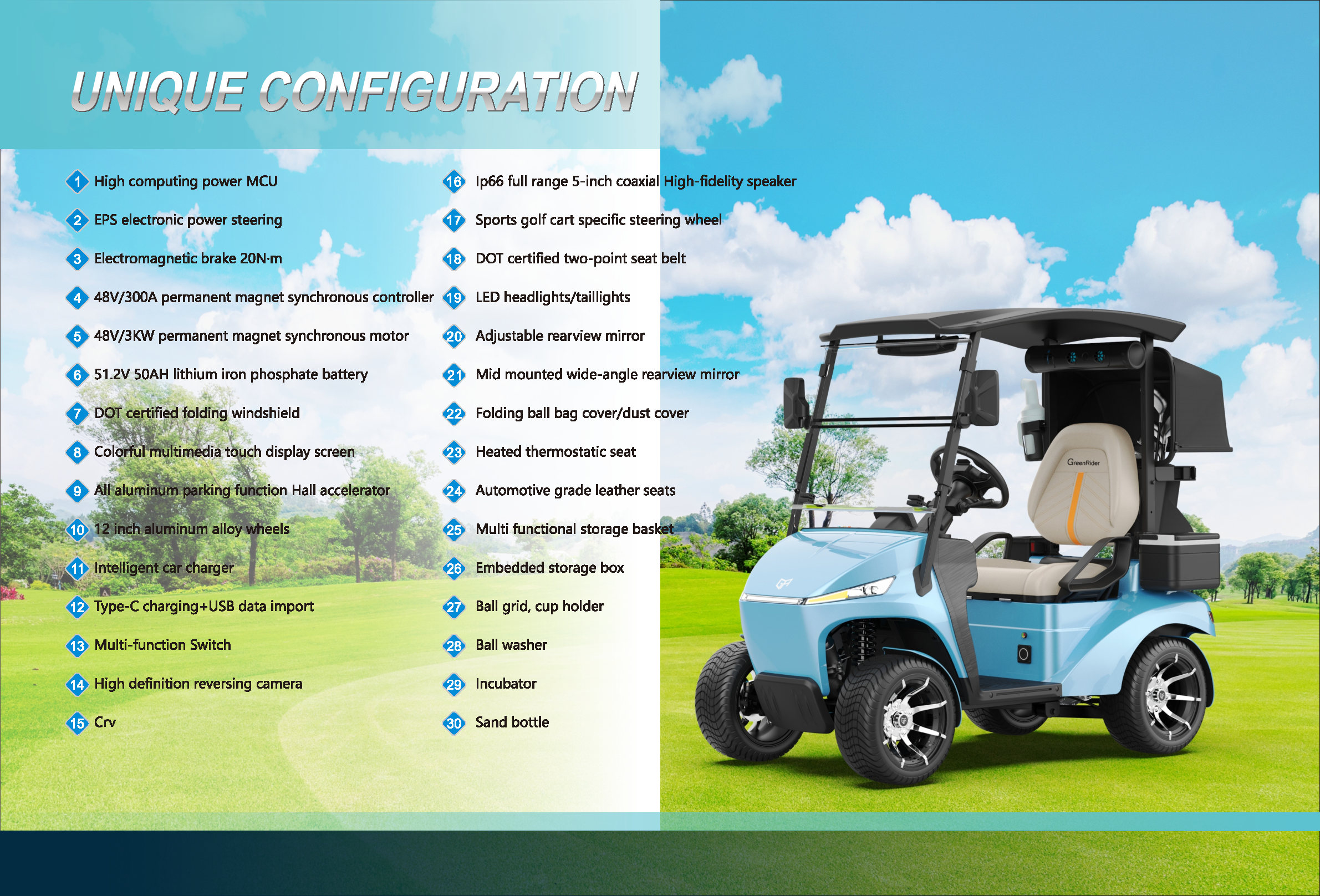

The DS-G1 PRO is designed for golfers seeking a premium experience. It features a 1.5KW permanent magnet synchronous motor and a 50AH lithium battery, delivering robust power and an extended range. With its Electric Power Steering (EPS) system, it provides light and precise handling for effortless control on the course.

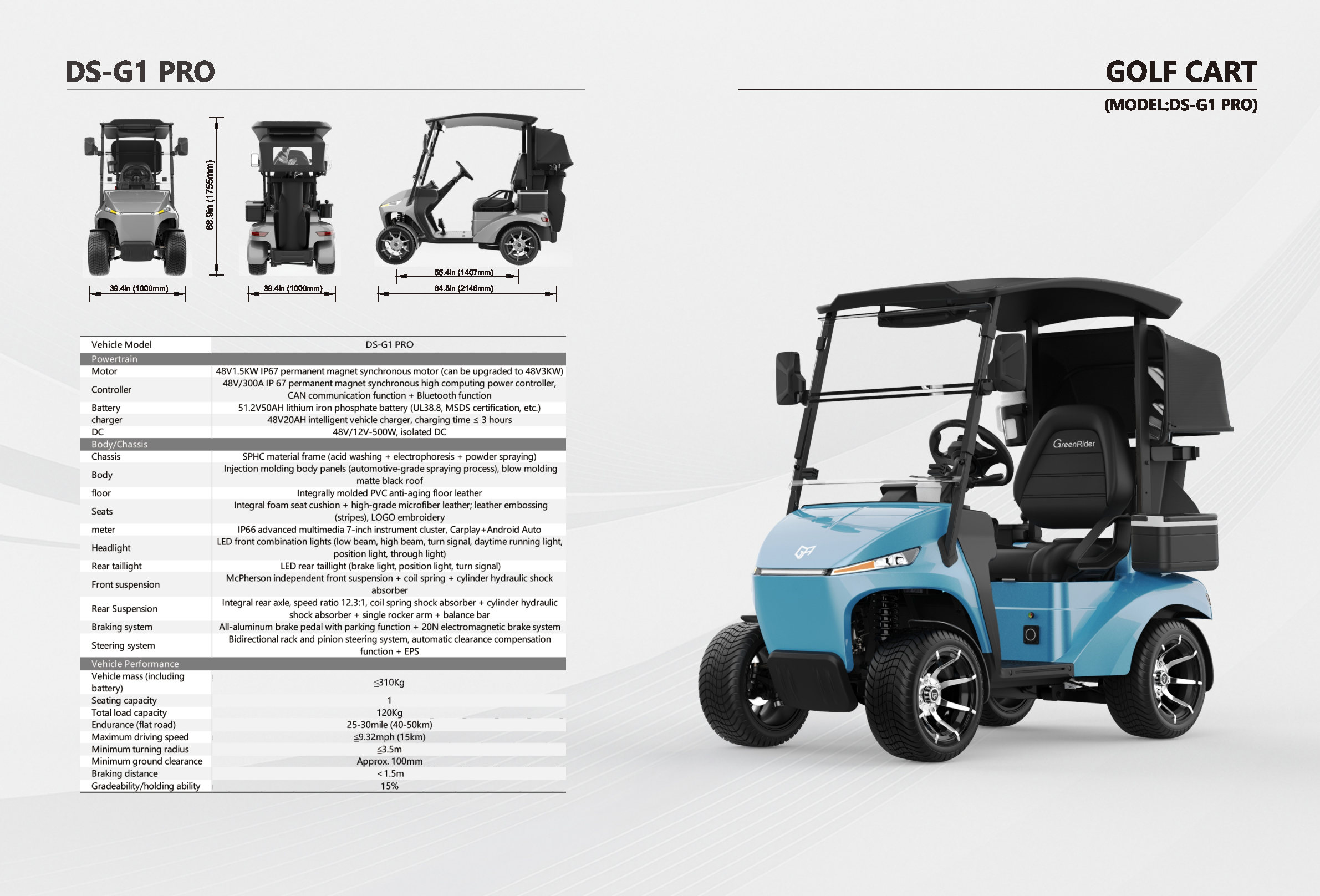

| Vehicle Configuration Table | |
| Vehicle Model |  |
| DS-G1 PRO | |
| Powertrain | |
| Motor | 48V1.5KW IP67 permanent magnet synchronous motor (can be upgraded to 48V3KW) |
| Controller | 48V/300A IP 67 permanent magnet synchronous high computing power controller, CAN communication function + Bluetooth function |

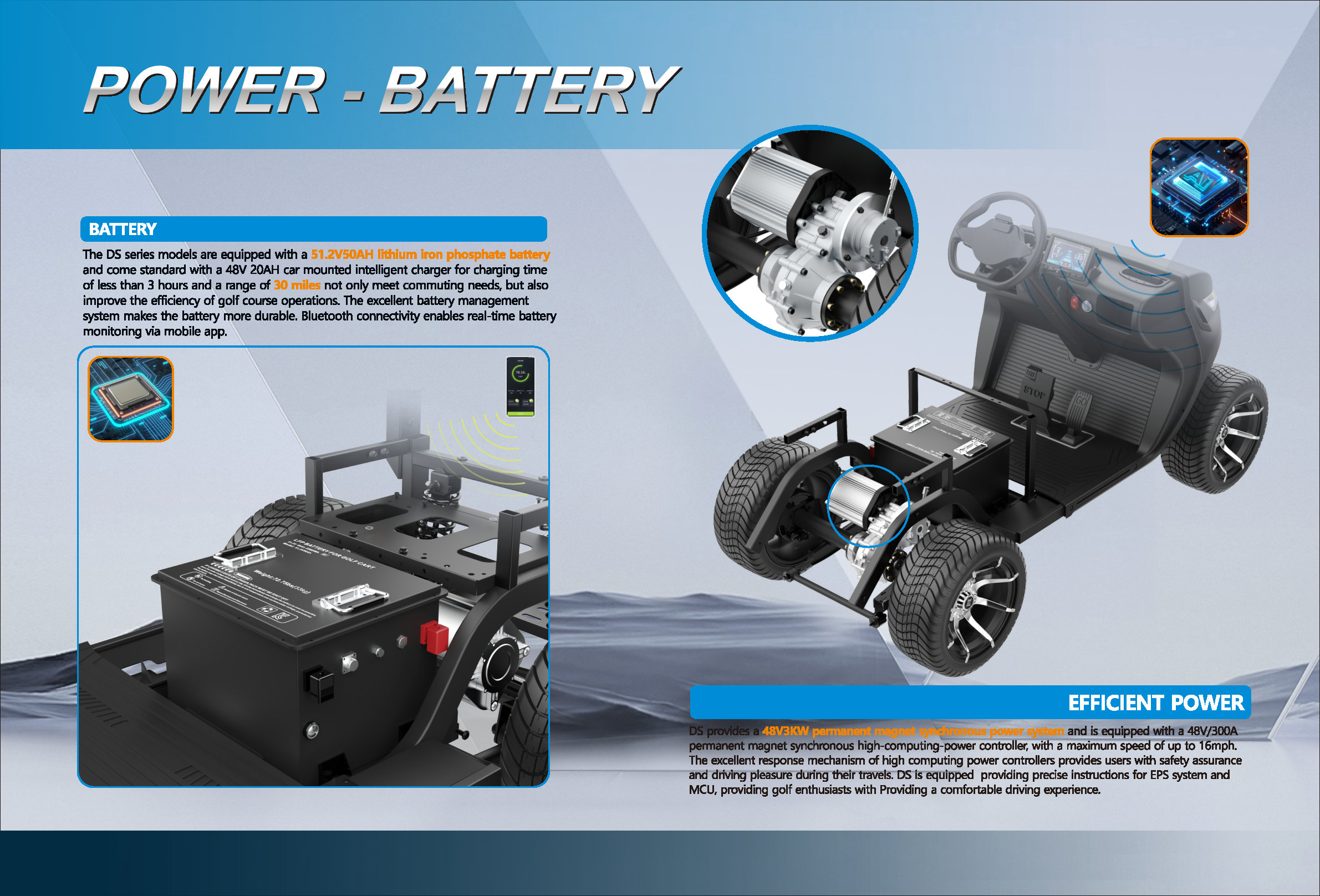

| Battery | 51.2V50AH lithium iron phosphate battery ( UL38.8, MSDS certification, etc.) |
| charger | 48V20AH intelligent vehicle charger, charging time ≤ 3 hours |
| DC | 48V/12V-500W, isolated DC |
| Body/Chassis | |
| Chassis | SPHC material frame (acid washing + electrophoresis + powder spraying) |
| Body | Injection molding body panels (automotive-grade spraying process), blow molding matte black roof |
| floor | Integrally molded PVC anti-aging floor leather |

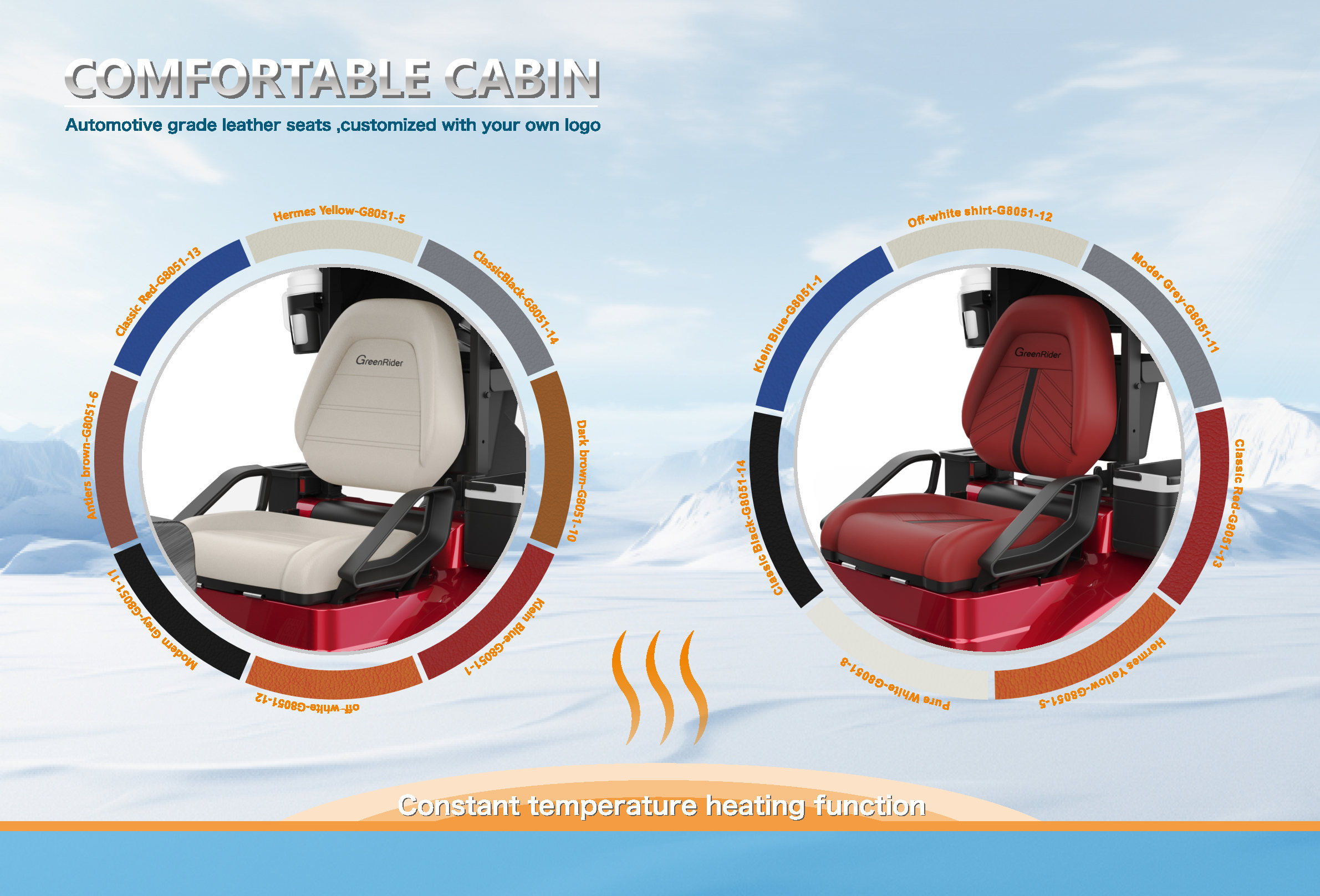

| Seats | Integral foam seat cushion + high-grade microfiber leather; leather embossing (stripes), LOGO embroidery |

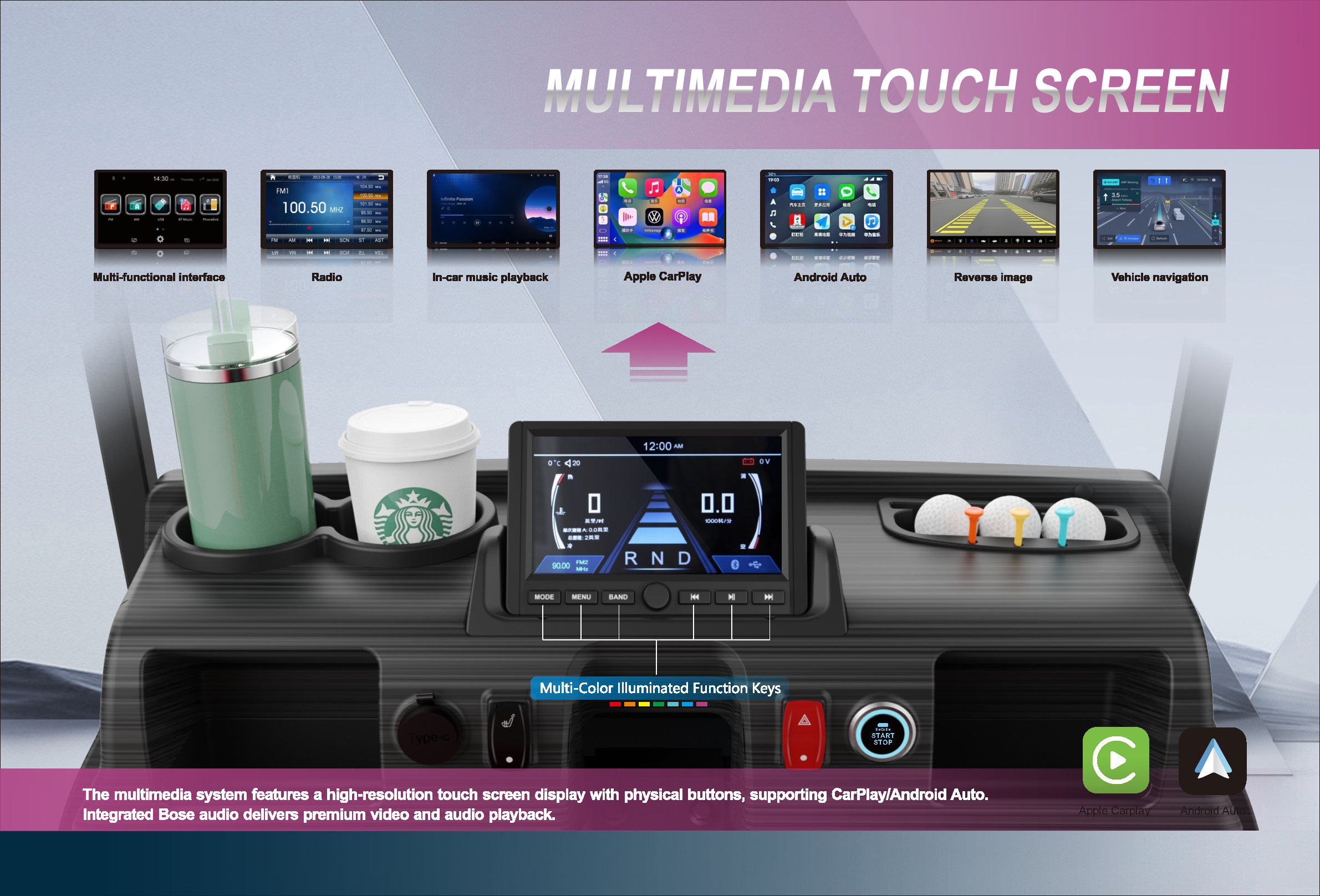

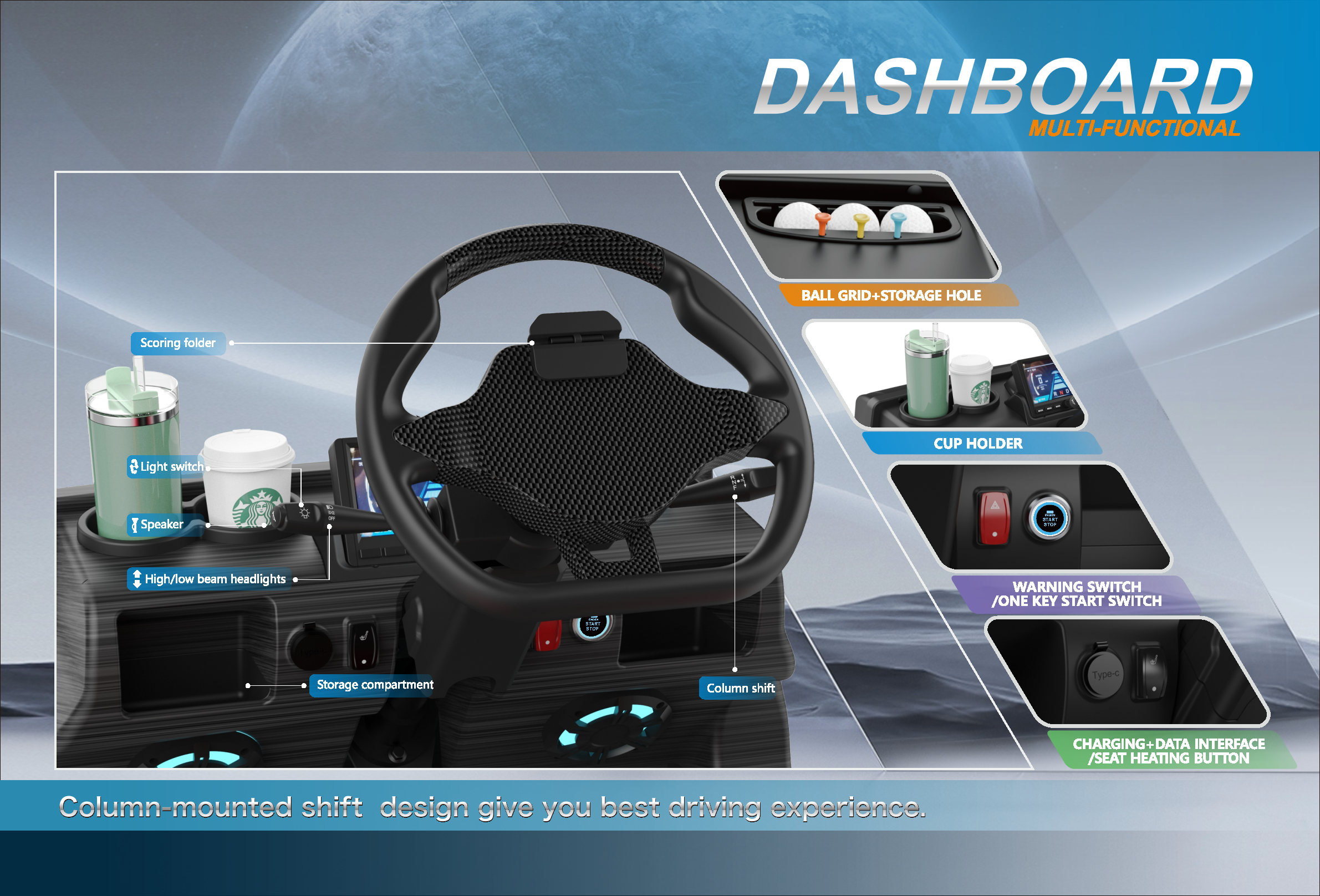

| meter | IP66 advanced multimedia 7-inch instrument cluster, Carplay+Android Auto |
| Headlight | LED front combination lights (low beam, high beam, turn signal, daytime running light, position light, through light) |
| Rear taillight | LED rear taillight (brake light, position light, turn signal) |

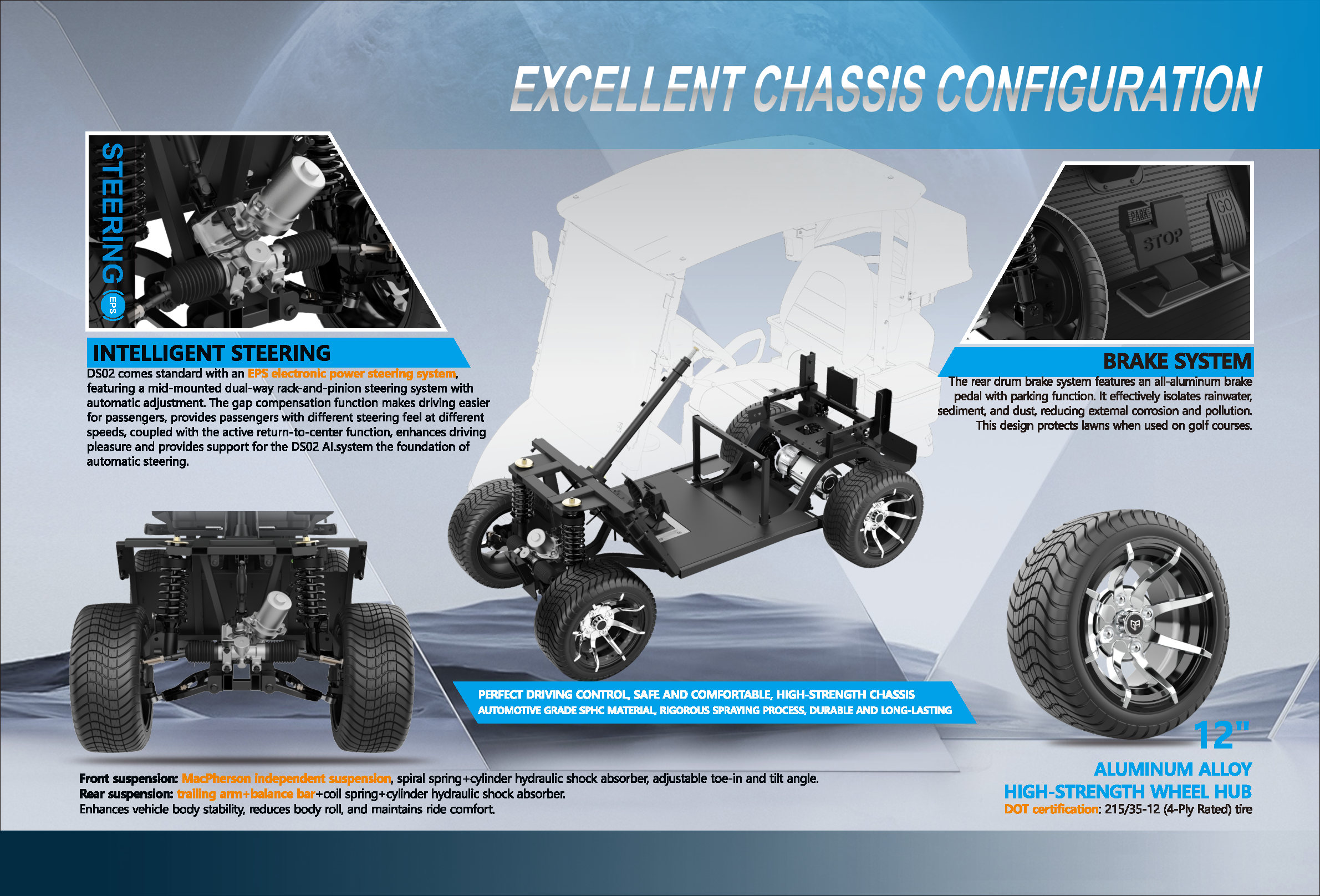

| Front suspension | McPherson independent front suspension + coil spring + cylinder hydraulic shock absorber |
| Rear Suspension | Integral rear axle, speed ratio 12.3:1, coil spring shock absorber + cylinder hydraulic shock absorber + single rocker arm + balance bar |
| Braking system | Rear drum brake, aluminum brake pedal with parking function+ 20N electromagnetic brake system |
| Steering system | Bidirectional rack and pinion steering system, automatic clearance compensation function + EPS |
| Vehicle Performance | |
| Vehicle mass (including battery) | ≦310Kg |
| Seating capacity | 1 |
| Total load capacity | 120Kg |
| Front/rear track | 前770mm/后770mm |
| Wheelbase | 1410mm |
| Endurance (flat road) | 25-30mile |
| Maximum driving speed | ≦15KM/hour |
| Minimum turning radius | ≦3.5m |
| Minimum ground clearance | Approx. 100mm |
| Braking distance | ＜1.5m |
| Gradeability/holding ability | 15% |
