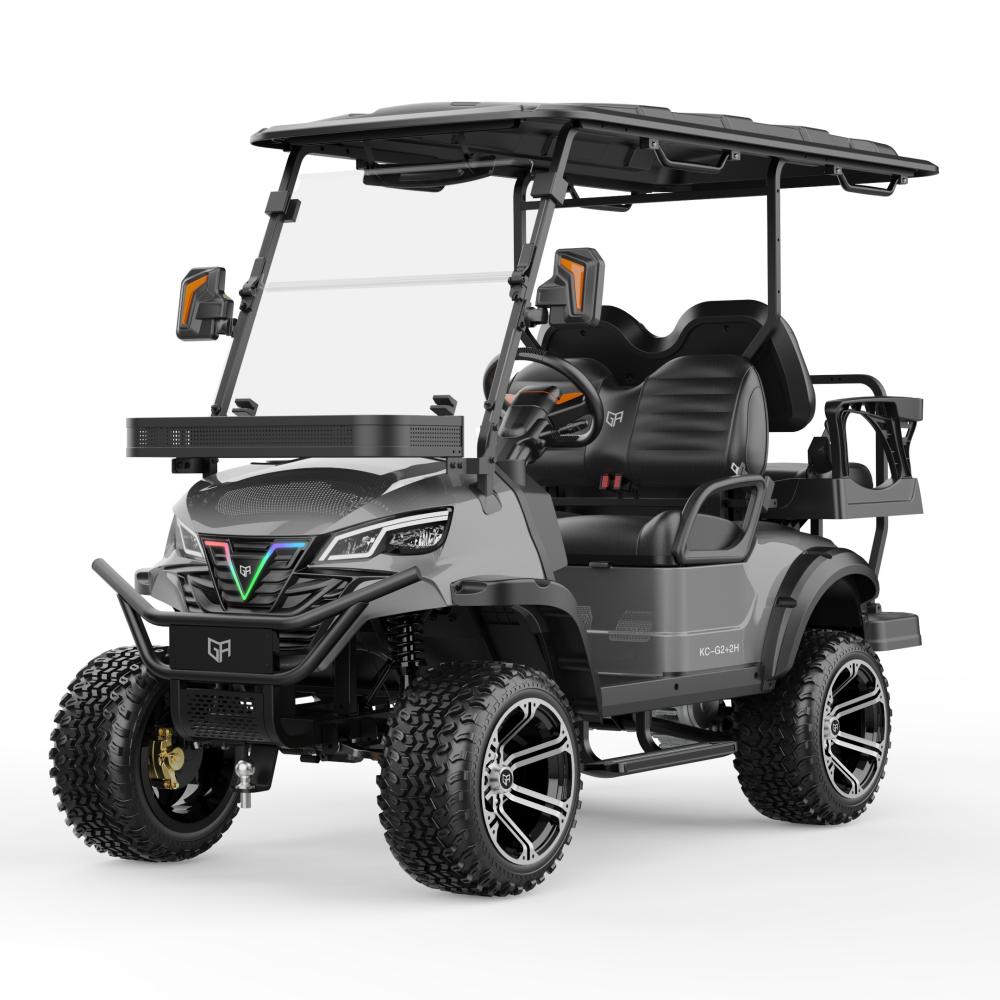

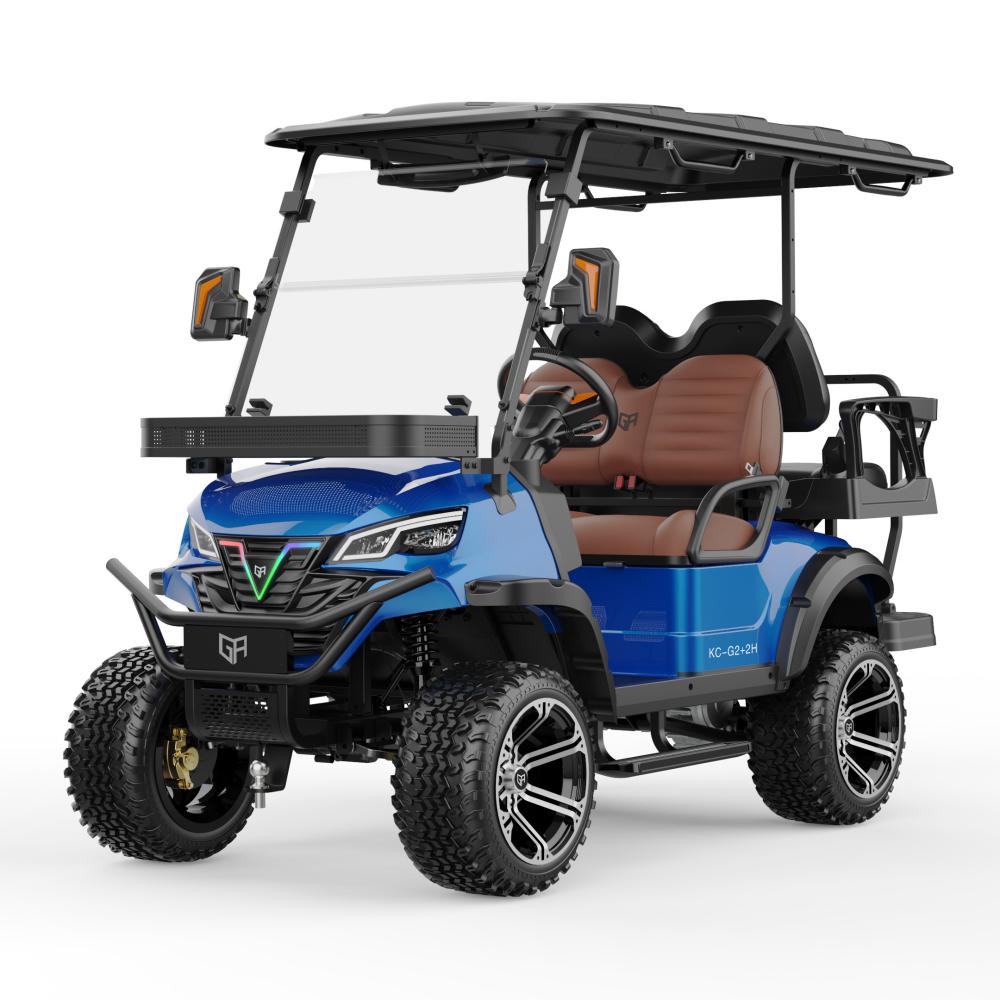

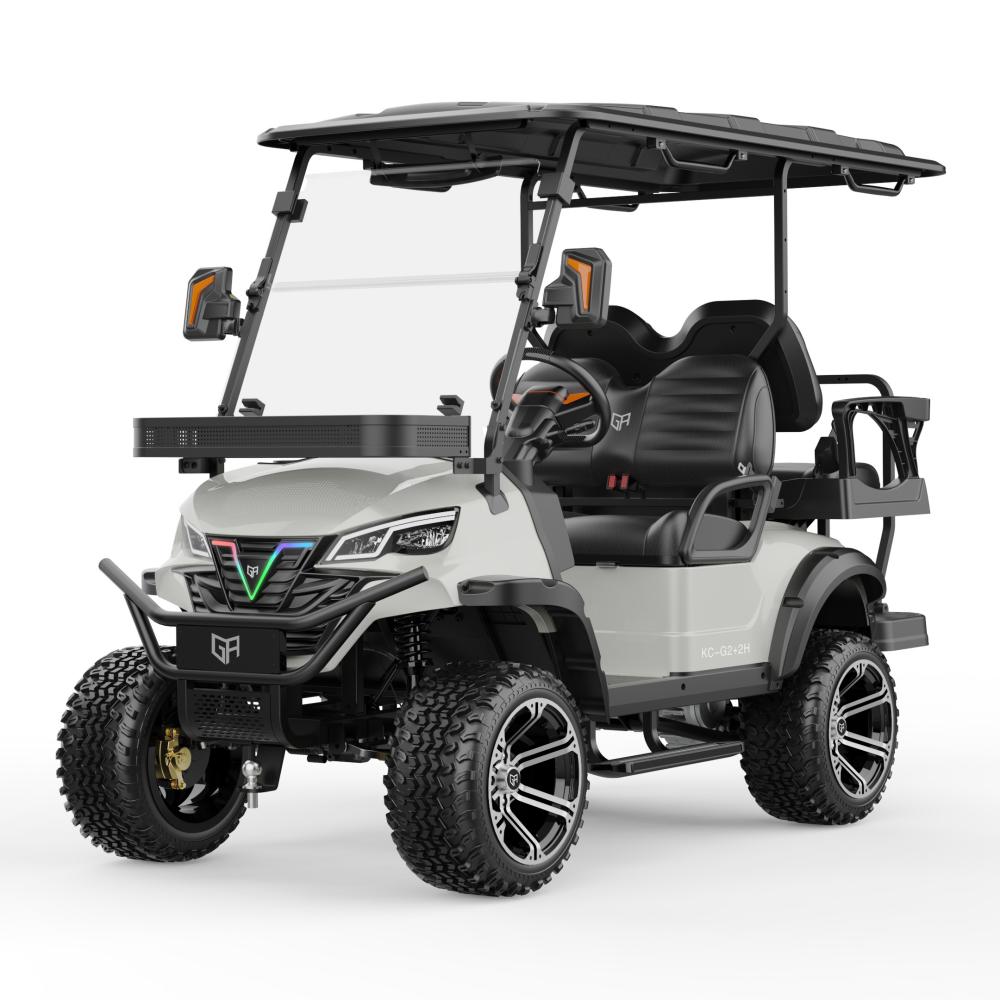

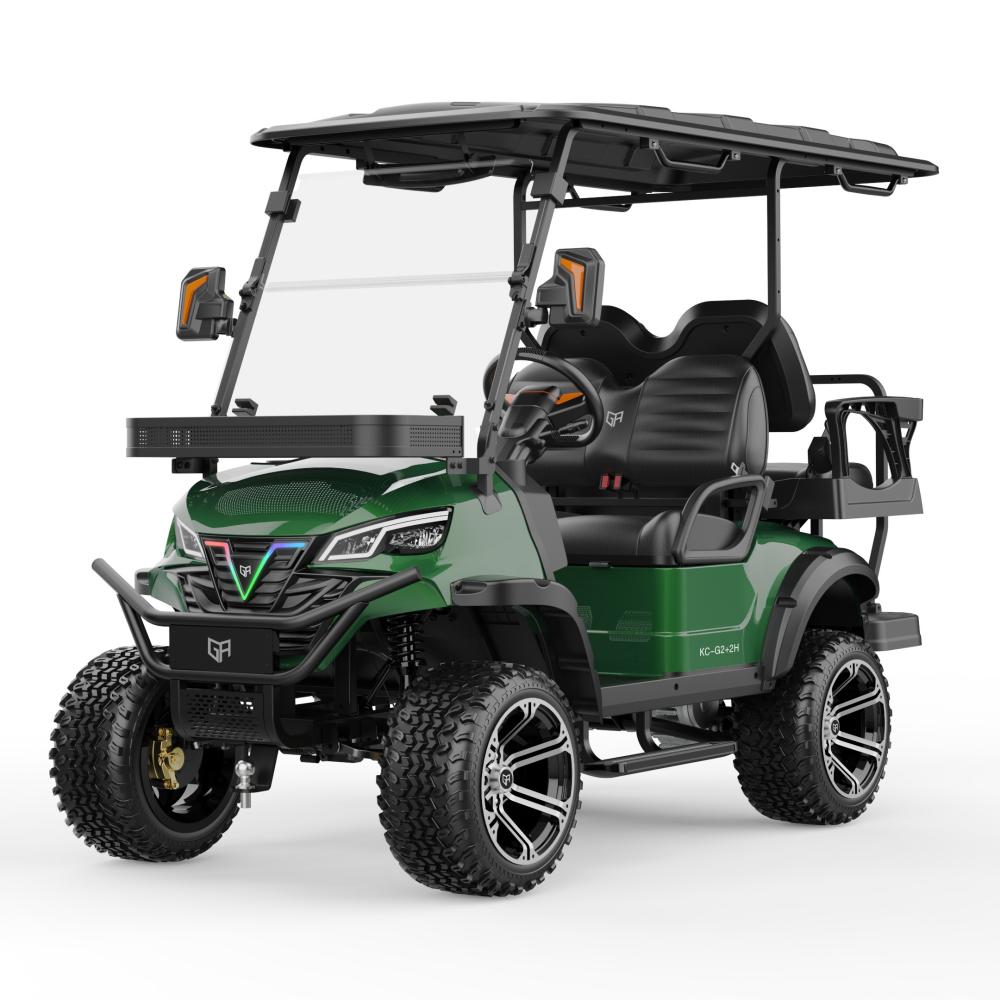

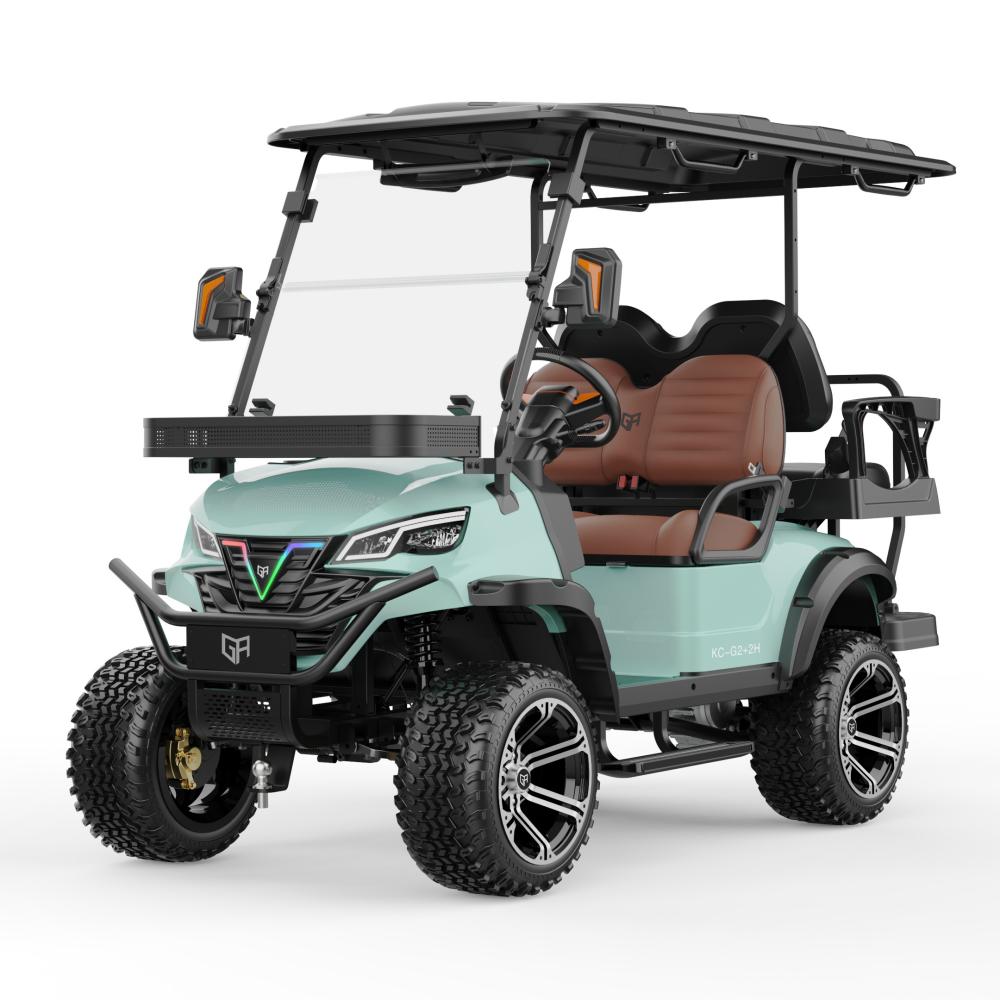

KC-G2+2H
The KC-G2+2H electric golf cart is designed to deliver power, comfort, and style for both leisure and professional use.
With its advanced off-road capabilities, premium materials, and ergonomic four-seat layout, it’s perfect for resorts, villas, golf courses, and scenic tours. Combining modern aesthetics with practical engineering, the KC-G2+2H is the ultimate expression of luxury electric mobility.
| KC-G Series Vehicle Parameter Table | ||||||||
| Vehicle Model |  |
 |
 |
 |
 |
 |
 |
 |
| G2 | G2H | G2+2 | G2+2H | G4 | G4H | G4+2 | G4+2H | |
| Powertrain | ||||||||
| Motor | 48V5KW IP67 AC Motor (Upgradable to 72V5KW) | |||||||
| Controller | 48V/350A IP67 AC Controller, with CAN bus & Built-in Bluetooth | |||||||
| Battery | 51.2V105AH LiFePO4 Battery (incl. UL38.8, MSDS certifications, etc.) | |||||||
| Charger | Intelligent On-board Charger 48V/20A, Charging Time ≤5 hours | |||||||
| DC | High-power non-isolated DC-DC 48V/12V-500W | |||||||
| Body/Chassis | ||||||||
| Chassis | High-strength sheet metal beam w/ composite frame; Painting: Pickling + E-coating + Spray painting, Pillar fine sand texture | |||||||
| Body | Injection molded exterior (Metallic paint finish), Injection molded matte black roof | |||||||
| Flooring | Integrated molded PVC anti-aging floor vinyl | |||||||
| Seats | Integrated foam molded seat cushion + Premium microfiber leather; Leather embossed (striped) | |||||||
| Front Suspension | Dual-arm suspension + coil spring + hydraulic shock absorber | |||||||
| Rear Suspension | Integral rear axle, Ratio 12.3:1 Coil spring + Tubular hydraulic shock absorber + Single swing arm + Stabilizer bar suspension | |||||||
| Braking System | Four-wheel hydraulic brake, Four-wheel disc brake + Electromagnetic parking brake (with vehicle towing function) | |||||||
| Steering System | Rack and pinion steering system, Automatic backlash compensation | |||||||
| Instrument Panel | Carbon fiber style (Hydro transfer printing) dashboard; IP66 premium 10-inch multimedia combo meter (Vehicle info + Multimedia) | |||||||
| Headlights | LED front combination lights (Low beam, High beam, Turn signal, DRL, Position light, Light bar) | |||||||
| Taillights | LED rear combination lights (Brake light, Position light, Turn signal) | |||||||
| Load/ Dimensions | ||||||||
| Curb Weight (excl. battery) | ≦390kg | ≦420kg | ≦460kg | ≦490kg | ≦420kg | ≦460kg | ≦490kg | ≦520kg |
| Seats | 2 | 2 | 4 | 4 | 4 | 4 | 6 | 6 |
| Body Dimensions | 2370*1340*2000mm | 2430*1340*2080mm | 2860*1340*2000mm | 2920*1340*2080mm | 3180*1340*2000mm | 3240*1340*2080mm | 3670*1340*2000mm | 3730*1340*2080mm |
| Front/Rear Track | Front 1030mm/Rear 1030mm | |||||||
| Wheelbase | 1675mm | 2420mm | ||||||
| Vehicle Performance | ||||||||
| Max Speed | ≦20MPH/Hours | ≦25MPH/Hours | ≦20MPH/Hours | ≦25MPH/Hours | ≦20MPH/Hours | ≦25MPH/Hours | ≦20MPH/Hours | ≦25MPH/Hours |
| Min Turning Radius | 4m | 4.5m | ||||||
| Braking Distance | ＜3m | ＜4.0m | ||||||
| Gradeability / Parking Gradeability | 20% — 30% | |||||||
| Range | 60-80mile(Flat road) | |||||||
| Min Ground Clearance | 140mm | 190mm | 140mm | 190mm | 140mm | 190mm | 140mm | 190mm |
