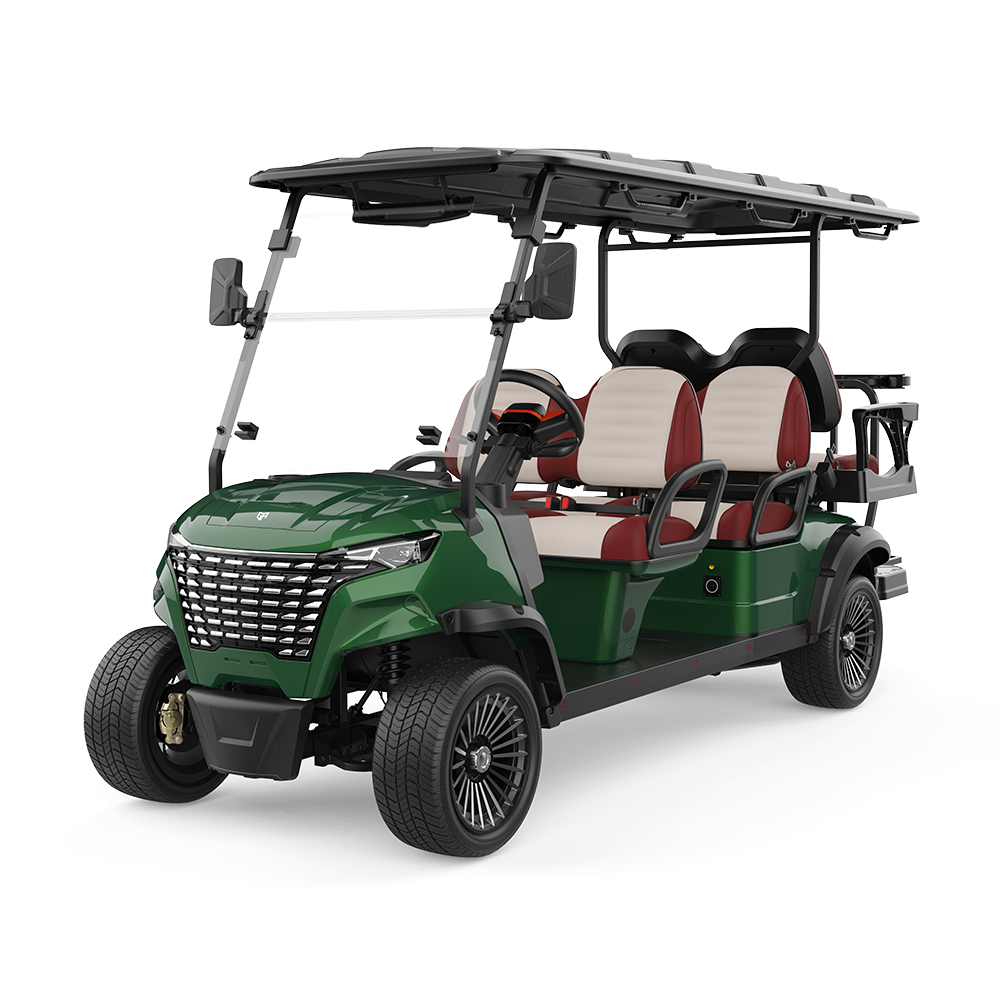

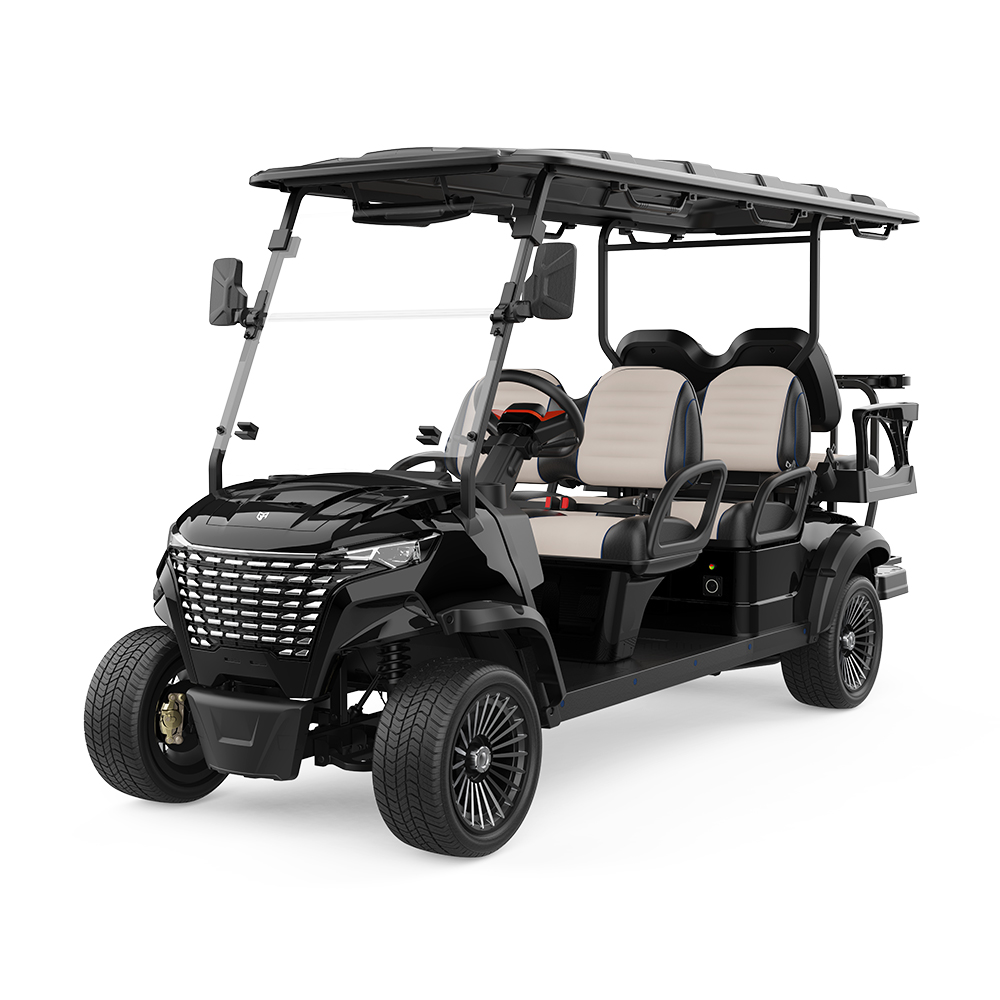

KR-G4+2
The GreenRider Golf Carts Electric 6 Seater is designed for versatility, supporting off-road adventures with a powerful 48V5KW IP67 AC motor and a robust high-strength chassis. It features an advanced LiFePO4 battery with certifications for safety and reliability, ensuring a range of 60-80 miles on flat roads. Equipped with intelligent systems like EPS steering, LED lights, and an electromagnetic braking system, it delivers both performance and comfort. The sleek metallic paint finish and premium microfiber leather seats add luxury, while the vehicle’s adaptable design suits golfing, hunting, and sightseeing.

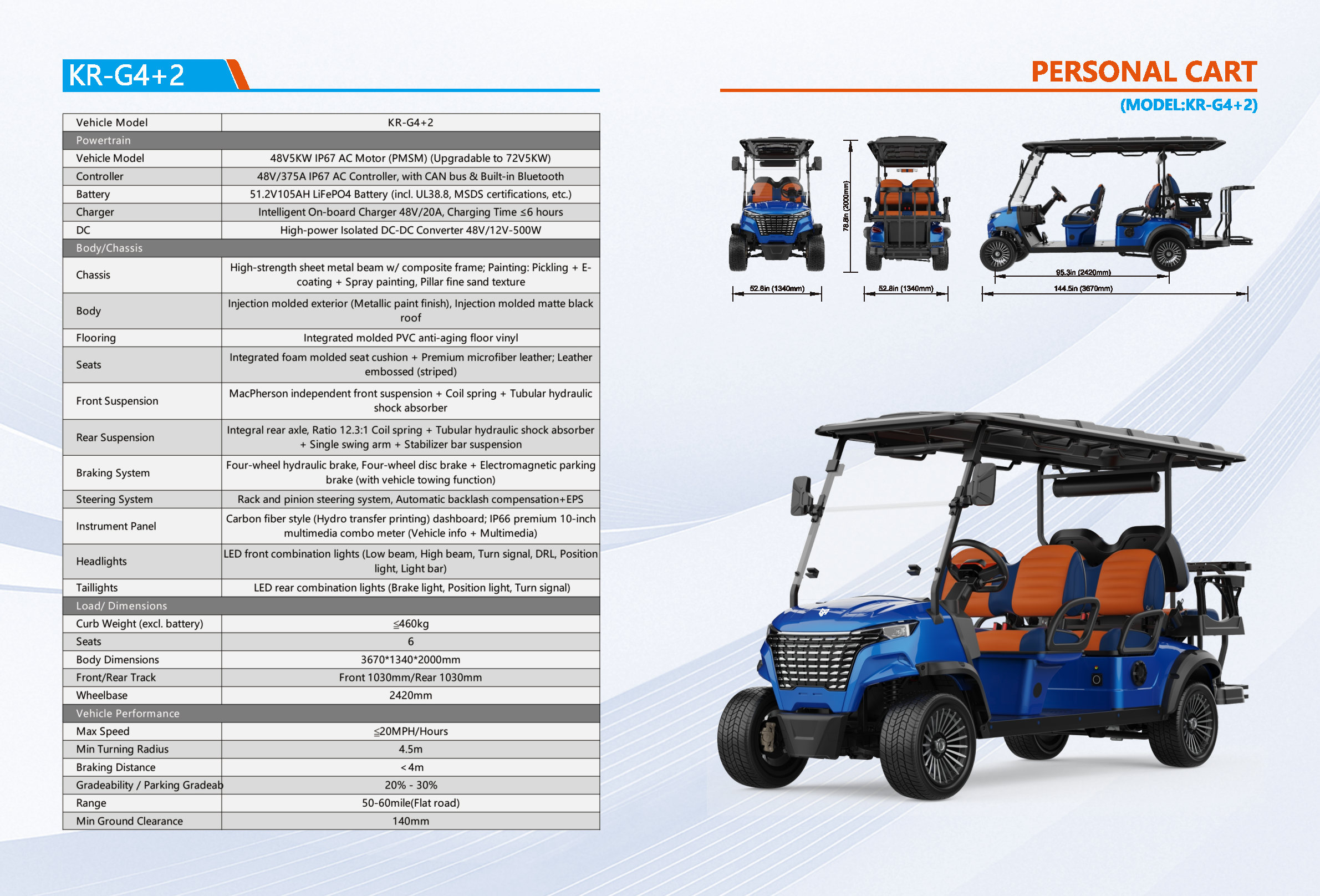

| KR-G Series Vehicle Parameter Table | ||||||||
| Vehicle Model |  |
 |
 |
 |
 |
 |
 |
 |
| G2 | G2H | G2+2 | G2+2H | G4 | G4H | G4+2 | G4+2H | |
| Powertrain | ||||||||
| Motor | 48V5KW IP67 AC Motor (Upgradable to 72V5KW) | |||||||
| Controller | 48V/350A IP67 AC Controller, with CAN bus & Built-in Bluetooth | |||||||

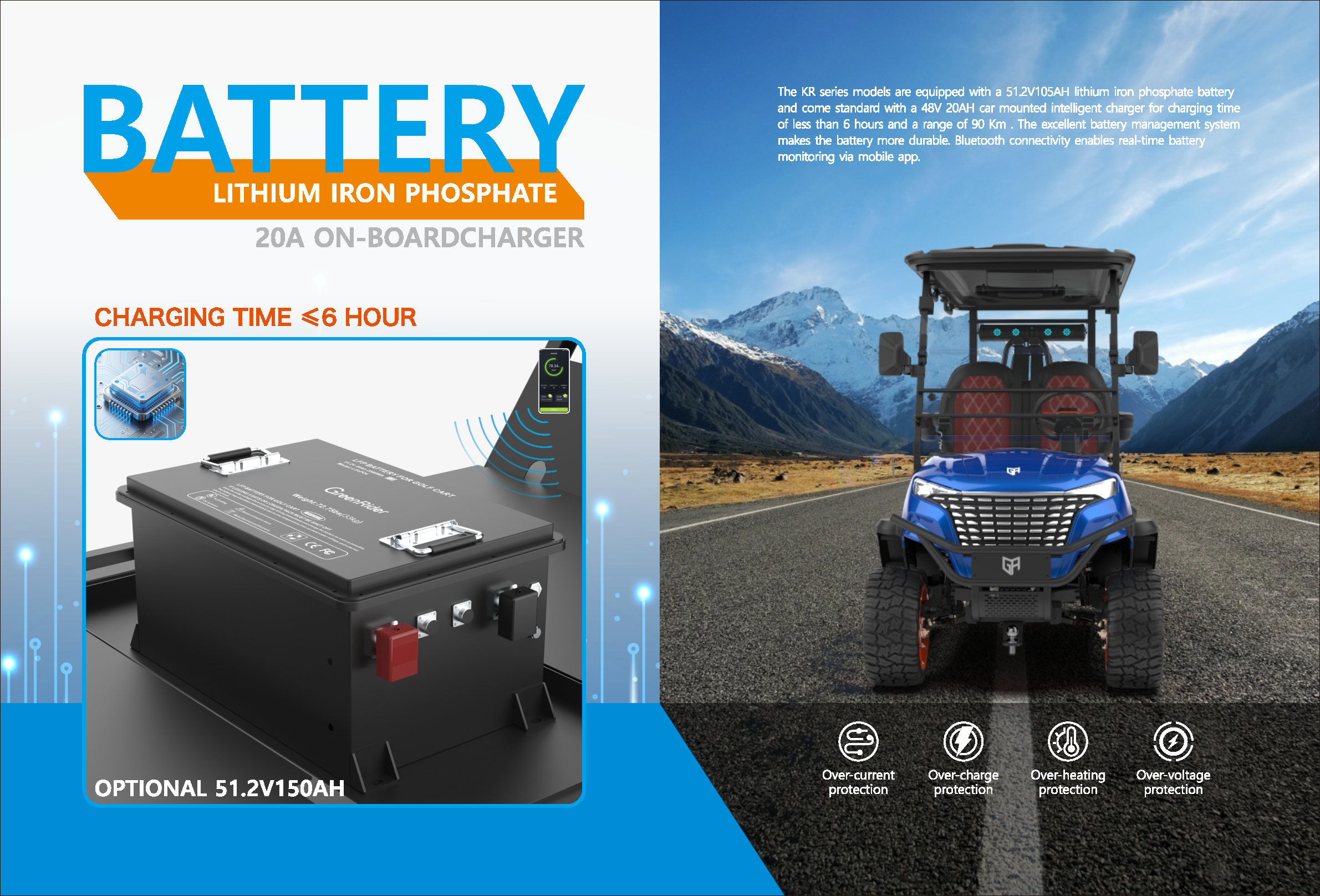

| Battery | 51.2V105AH LiFePO4 Battery (incl. UL38.8, MSDS certifications, etc.) | |||||||
| Charger | Intelligent On-board Charger 48V/20A, Charging Time ≤5 hours | |||||||
| DC | High-power non-isolated DC-DC 48V/12V-500W | |||||||
| Body/Chassis | ||||||||
| Chassis | High-strength sheet metal beam w/ composite frame; Painting: Pickling + E-coating + Spray painting, Pillar fine sand texture | |||||||
| Body | Injection molded exterior (Metallic paint finish), Injection molded matte black roof | |||||||
| Flooring | Integrated molded PVC anti-aging floor vinyl | |||||||
| Seats | Integrated foam molded seat cushion + Premium microfiber leather; Leather embossed (striped) | |||||||

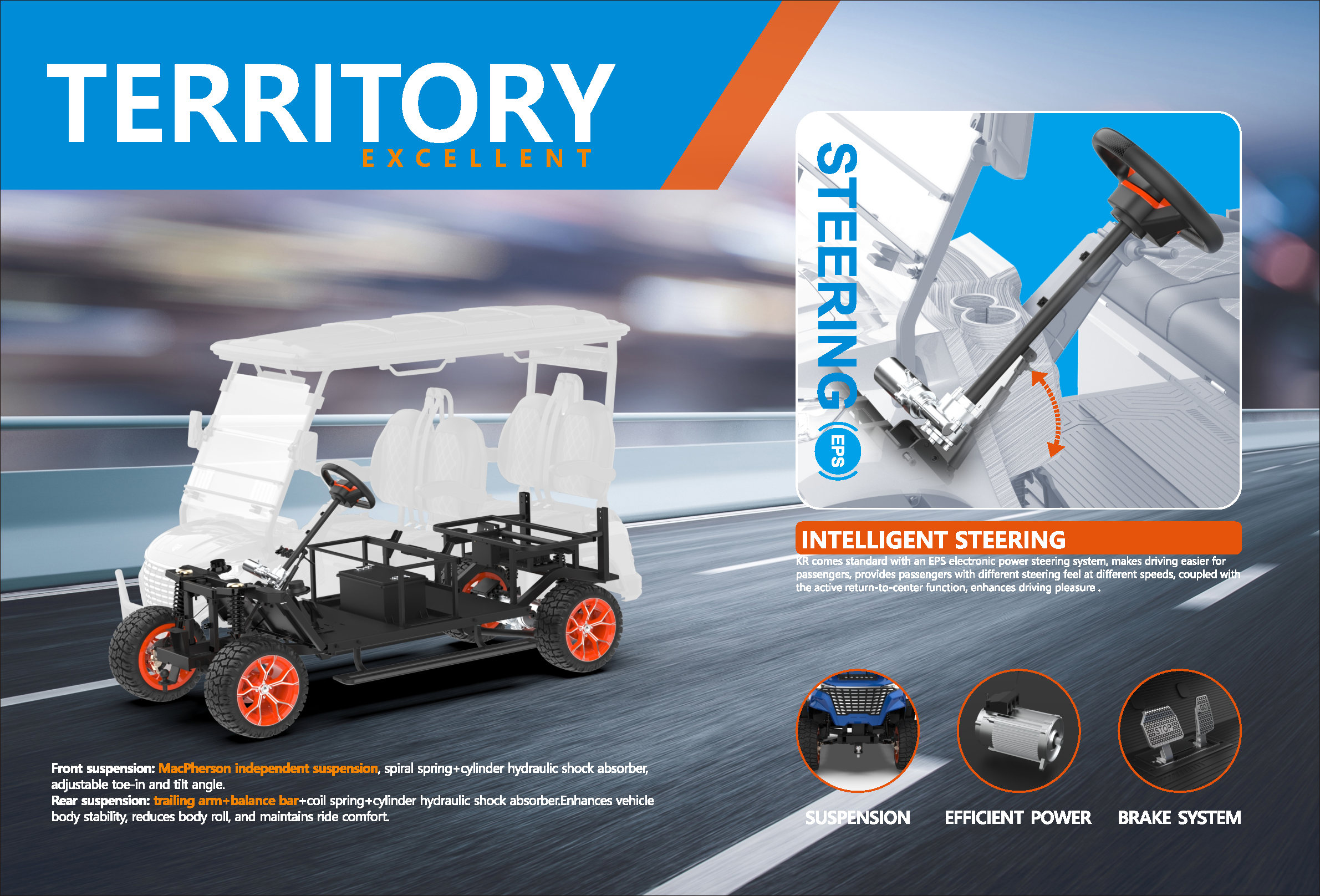

| Front Suspension | Dual-arm suspension + coil spring + hydraulic shock absorber | |||||||
| Rear Suspension | Integral rear axle, Ratio 12.3:1 Coil spring + Tubular hydraulic shock absorber + Single swing arm + Stabilizer bar suspension | |||||||
| Braking System | Four-wheel hydraulic brake, Four-wheel disc brake + Electromagnetic parking brake (with vehicle towing function) | |||||||
| Steering System | Rack and pinion steering system, Automatic backlash compensation | |||||||

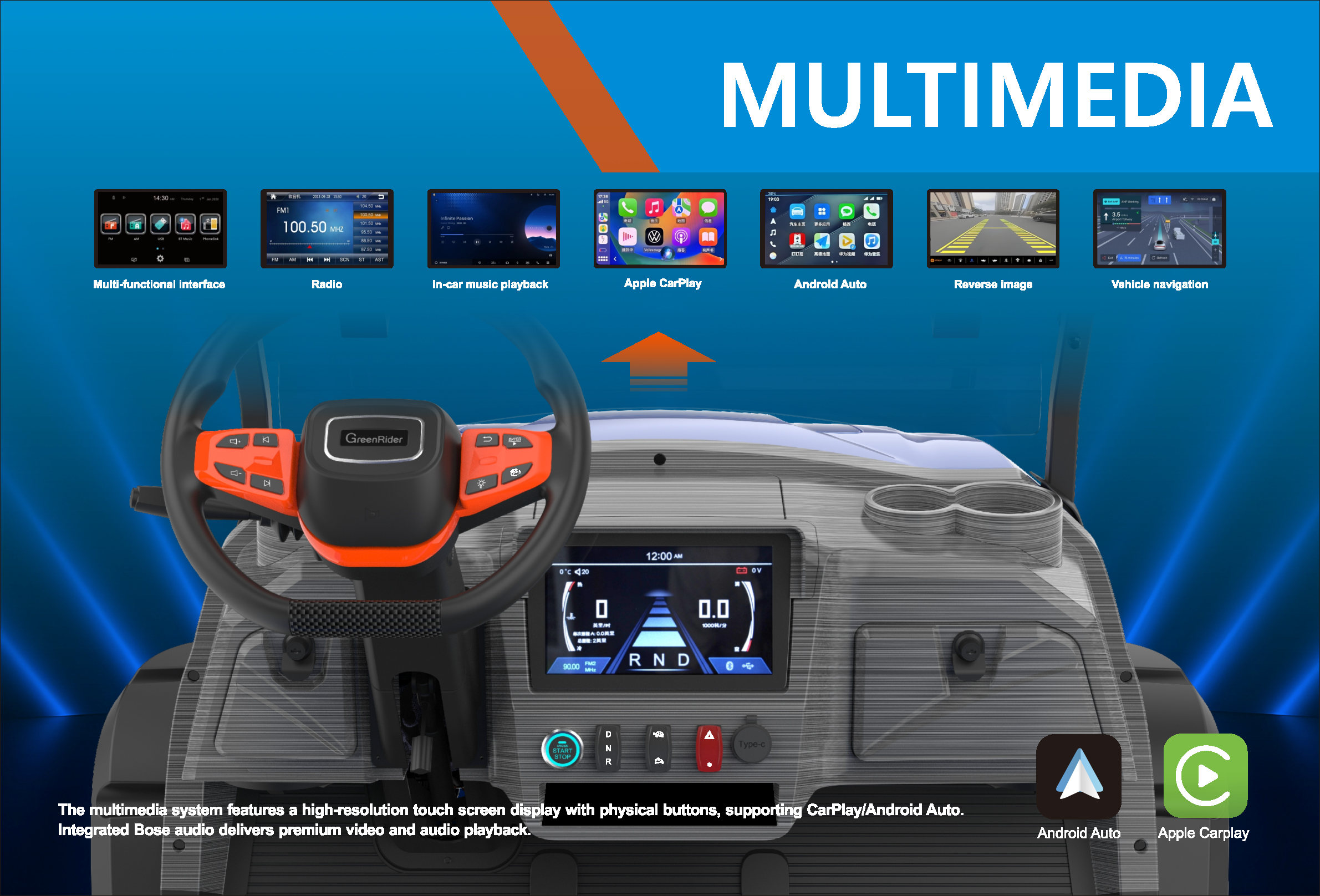

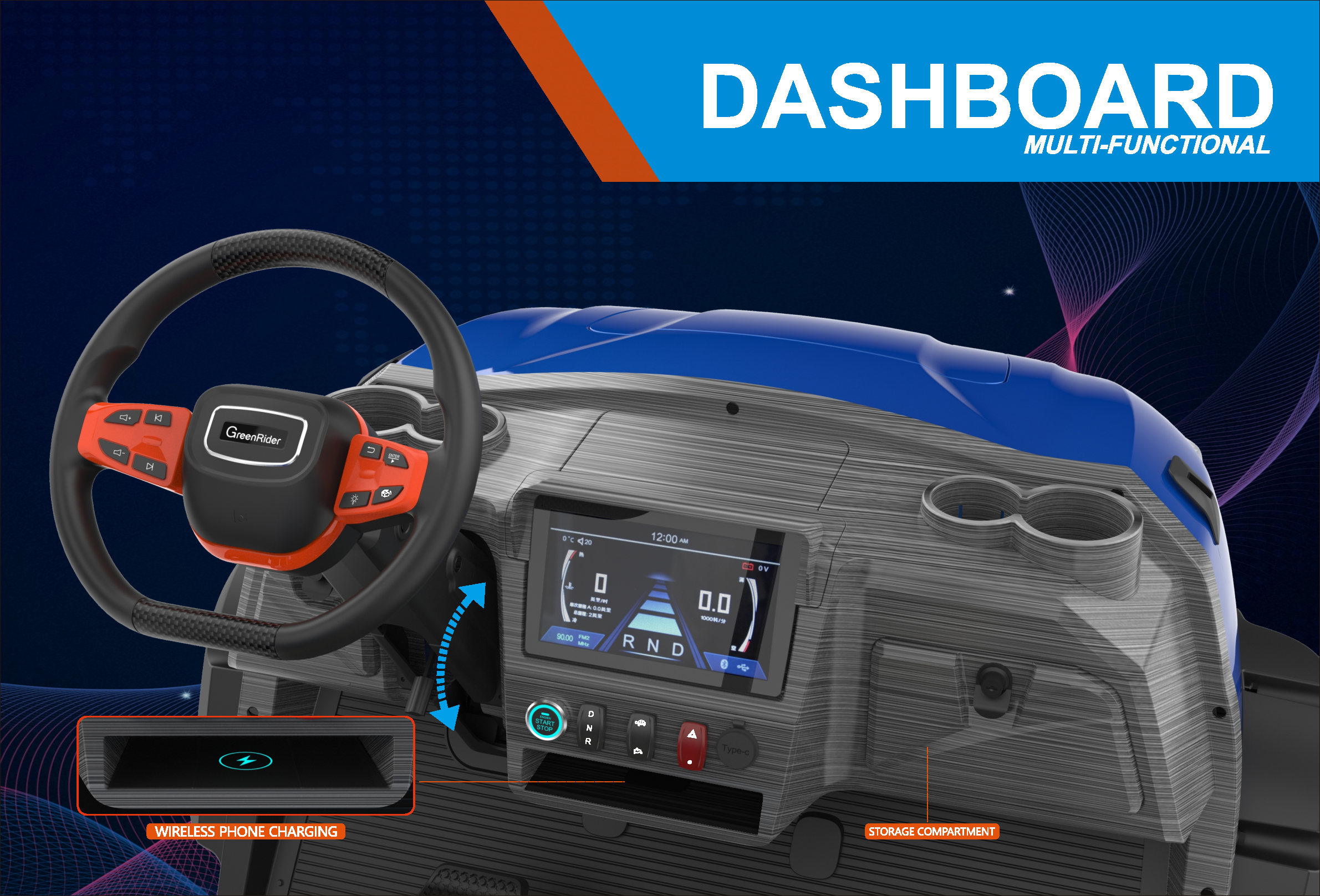

| Instrument Panel | Carbon fiber style (Hydro transfer printing) dashboard; IP66 premium 10-inch multimedia combo meter (Vehicle info + Multimedia) | |||||||
| Headlights | LED front combination lights (Low beam, High beam, Turn signal, DRL, Position light, Light bar) | |||||||
| Taillights | LED rear combination lights (Brake light, Position light, Turn signal) | |||||||
| Load/ Dimensions | ||||||||
| Curb Weight (excl. battery) | ≦390kg | ≦420kg | ≦460kg | ≦490kg | ≦420kg | ≦460kg | ≦490kg | ≦520kg |
| Seats | 2 | 2 | 4 | 4 | 4 | 4 | 6 | 6 |
| Body Dimensions | 2370*1340*2000mm | 2430*1340*2080mm | 2860*1340*2000mm | 2920*1340*2080mm | 3180*1340*2000mm | 3240*1340*2080mm | 3670*1340*2000mm | 3730*1340*2080mm |
| Front/Rear Track | Front 1030mm/Rear 1030mm 、 |
|||||||
| Wheelbase | 1675mm | 2420mm | ||||||
| Vehicle Performance | ||||||||
| Max Speed | ≦20MPH/Hours | ≦25MPH/Hours | ≦20MPH/Hours | ≦25MPH/Hours | ≦20MPH/Hours | ≦25MPH/Hours | ≦20MPH/Hours | ≦25MPH/Hours |
| Min Turning Radius | 4m | 4.5m | ||||||
| Braking Distance | ＜3m | ＜4.0m | ||||||
| Gradeability / Parking Gradeability | 20% — 30% | |||||||
| Range | 60-80mile(Flat road) | |||||||
| Min Ground Clearance | 140mm | 190mm | 140mm | 190mm | 140mm | 190mm | 140mm | 190mm |
