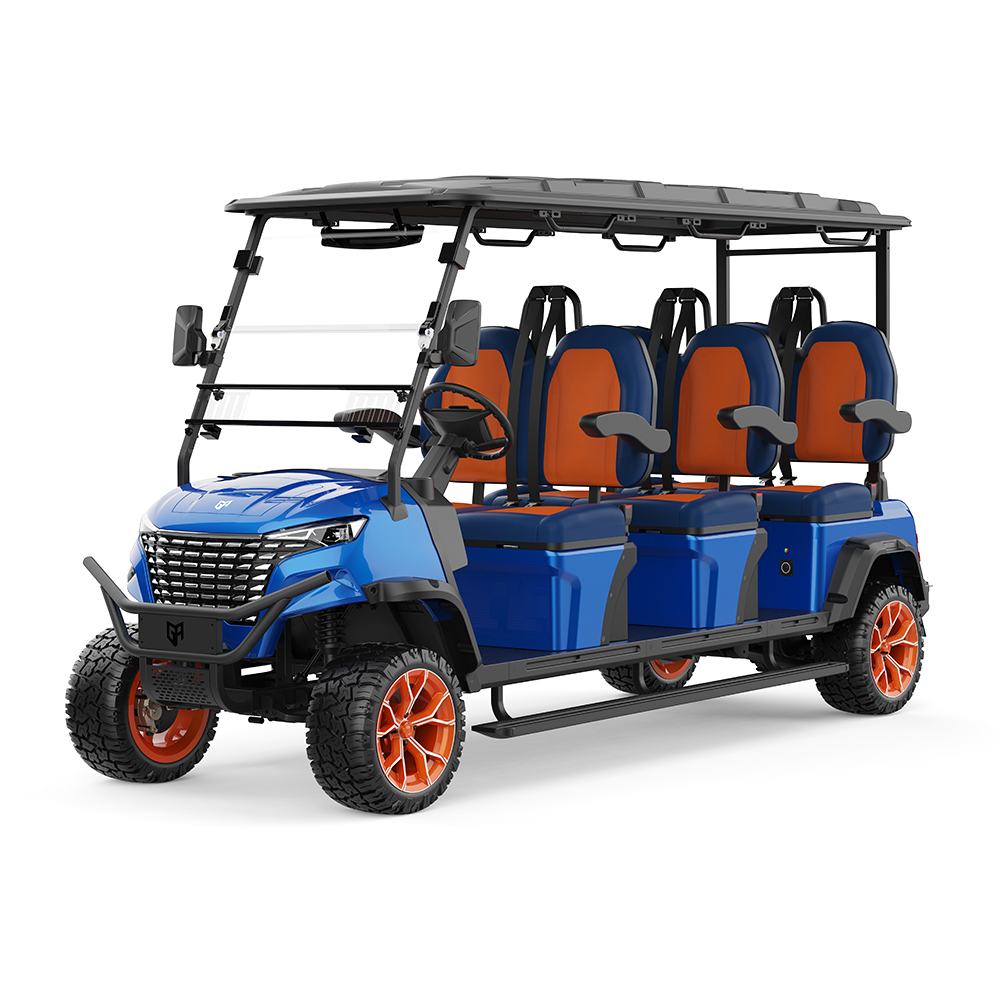

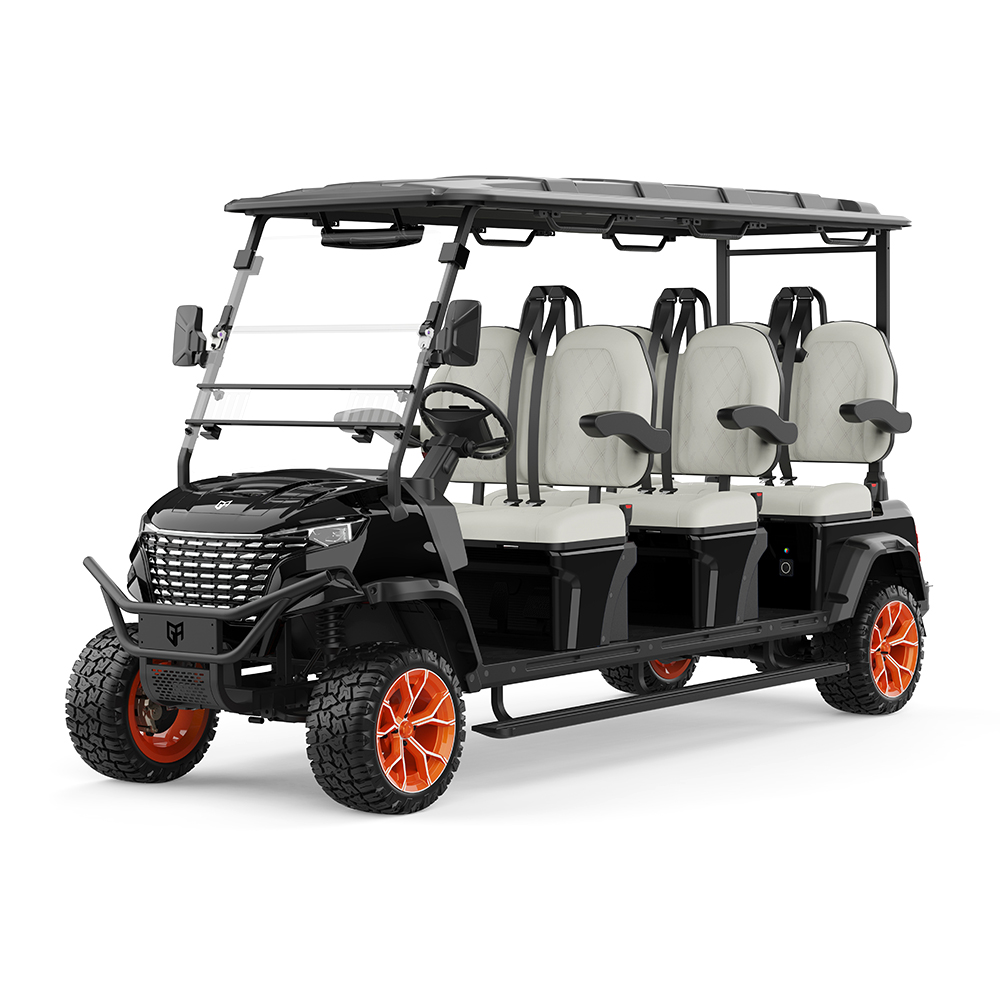

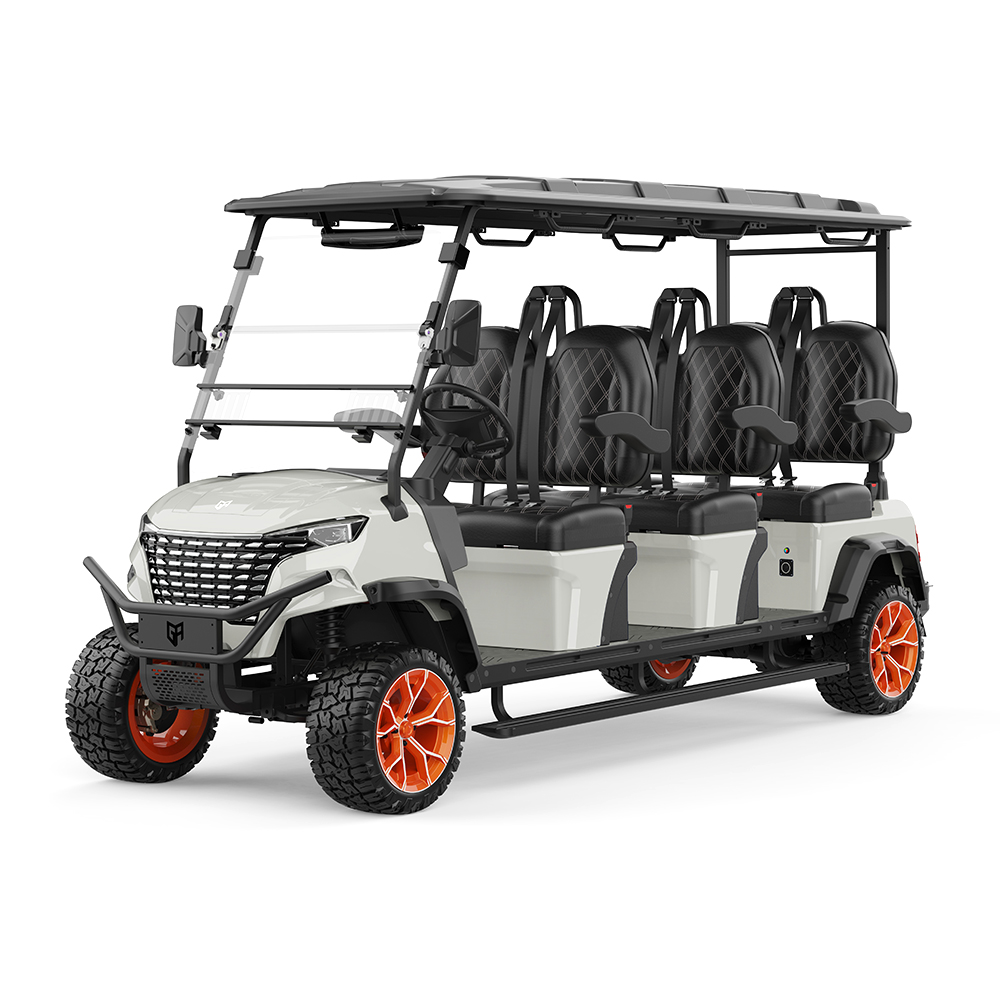

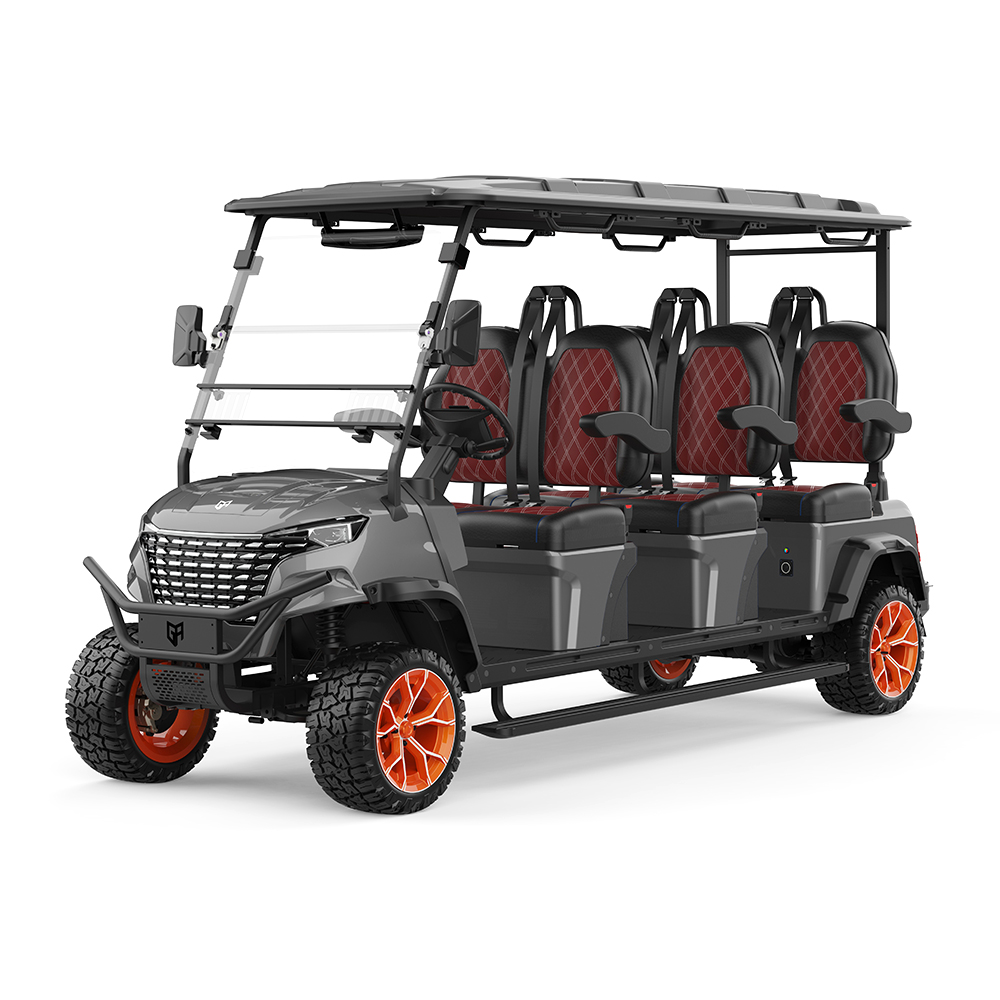

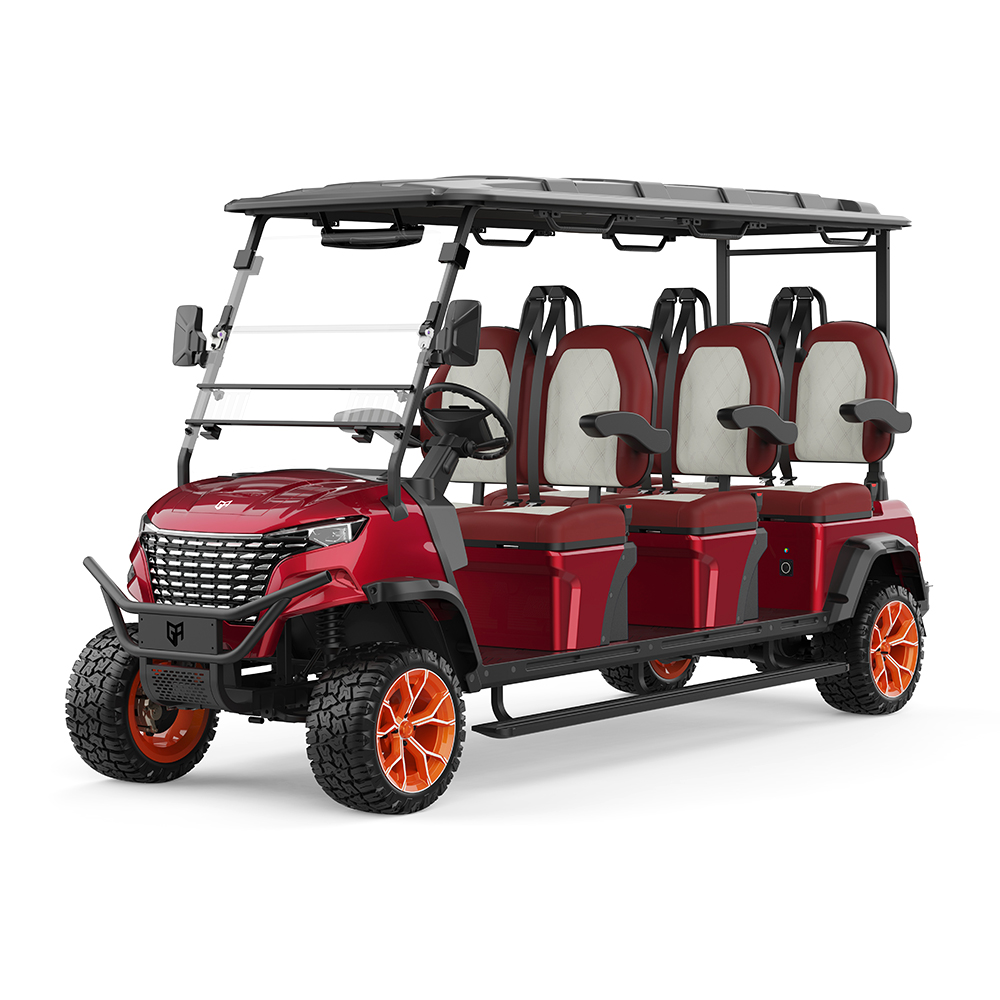

KR-P6H
Experience the Greenrider Custom Off Road Street Legal Electric Golf Cart, featuring a 48V5KW IP67 AC Motor, 51.2V105AH LiFePO4 Battery, and a sleek injection-molded exterior with metallic paint finish. Equipped with intelligent onboard charger, LED lights, and an EPS steering system, it ensures superior performance and style. With a range of 60-80 miles on flat roads and seating for up to 6, it’s ideal for golf courses, tourist attractions, and more.
| KR-P Series Vehicle Parameter Table | ||||
| Vehicle Model |  |
 |
 |
 |
| P4 | P4H | P6 | P6H | |
| Powertrain | ||||
| Motor | 48V5KW IP67 AC Motor (Upgradable to 72V5KW) | |||
| Controller | 48V/350A IP67 AC Controller, with CAN bus & Built-in Bluetooth | |||
| Battery | 51.2V105AH LiFePO4 Battery (incl. UL38.8, MSDS certifications, etc.) | |||
| Charger | Intelligent On-board Charger 48V/20A, Charging Time ≤5 hours | |||
| DC | High-power non-isolated DC-DC 48V/12V-500W | |||
| Body/Chassis | ||||
| Chassis | High-strength sheet metal beam w/ composite frame; Painting: Pickling + E-coating + Spray painting, Pillar fine sand texture | |||
| Body | Injection molded exterior (Metallic paint finish), Injection molded matte black roof | |||
| Flooring | Integrated molded PVC anti-aging floor vinyl | |||
| Seats | Integrated foam molded seat cushion + Premium microfiber leather; Leather embossed (striped) |
|||
| Front Suspension | Dual-arm suspension + coil spring + hydraulic shock absorber | |||
| Rear Suspension | Integral rear axle, Ratio 12.3:1 Coil spring + Tubular hydraulic shock absorber + Single swing arm + Stabilizer bar suspension |
|||
| Braking System | Four-wheel hydraulic brake, Four-wheel disc brake + Electromagnetic parking brake (with vehicle towing function) |
|||
| Steering System | Rack and pinion steering system, Automatic backlash compensation+EPS | |||
| Instrument Panel | Carbon fiber style (Hydro transfer printing) dashboard; IP66 premium 10-inch multimedia combo meter (Vehicle info + Multimedia) |
|||
| Headlights | LED front combination lights (Low beam, High beam, Turn signal, DRL, Position light, Light bar) |
|||
| Taillights | LED rear combination lights (Brake light, Position light, Turn signal) | |||
| Load/ Dimensions | ||||
| Curb Weight (excl. battery) | ≦480kg | ≦510kg | ≦530kg | ≦550kg |
| Seating Capacity | 4 | 4 | 6 | 6 |
| Body Dimensions (LWH) | 2935*1270*2000mm | 2995*1270*2080mm | 3720*1270*2000mm | 3780*1270*2080mm |
| Front/Rear Track | 前970mm/后1030mm | |||
| Wheelbase | 2075mm | 2860mm | ||
| Vehicle Performance | ||||
| Max Speed | ≦20MPH/Hours | ≦25MPH/Hours | ≦20MPH/Hours | ≦25MPH/Hours |
| Min Turning Radius | 4m | 4.5m | ||
| Braking Distance | ＜3m | 3.5m | ||
| Gradeability / Parking Gradeability | 20% — 30% | |||
| Range | 60-80mile(Flat road) | |||
| Min Ground Clearance | 140mm | 190mm | 140mm | 190mm |
